Order Number: E3041
Data Rate: Adaptive, (Max) 2M
Addressing Method: Set by the main station software
Module Power Supply: Connected internally to the system
Protection Grade: IP20
Installation Method: DIN35 rail installation or hole drilling installation
Operating Temperature: -20℃ to +75℃

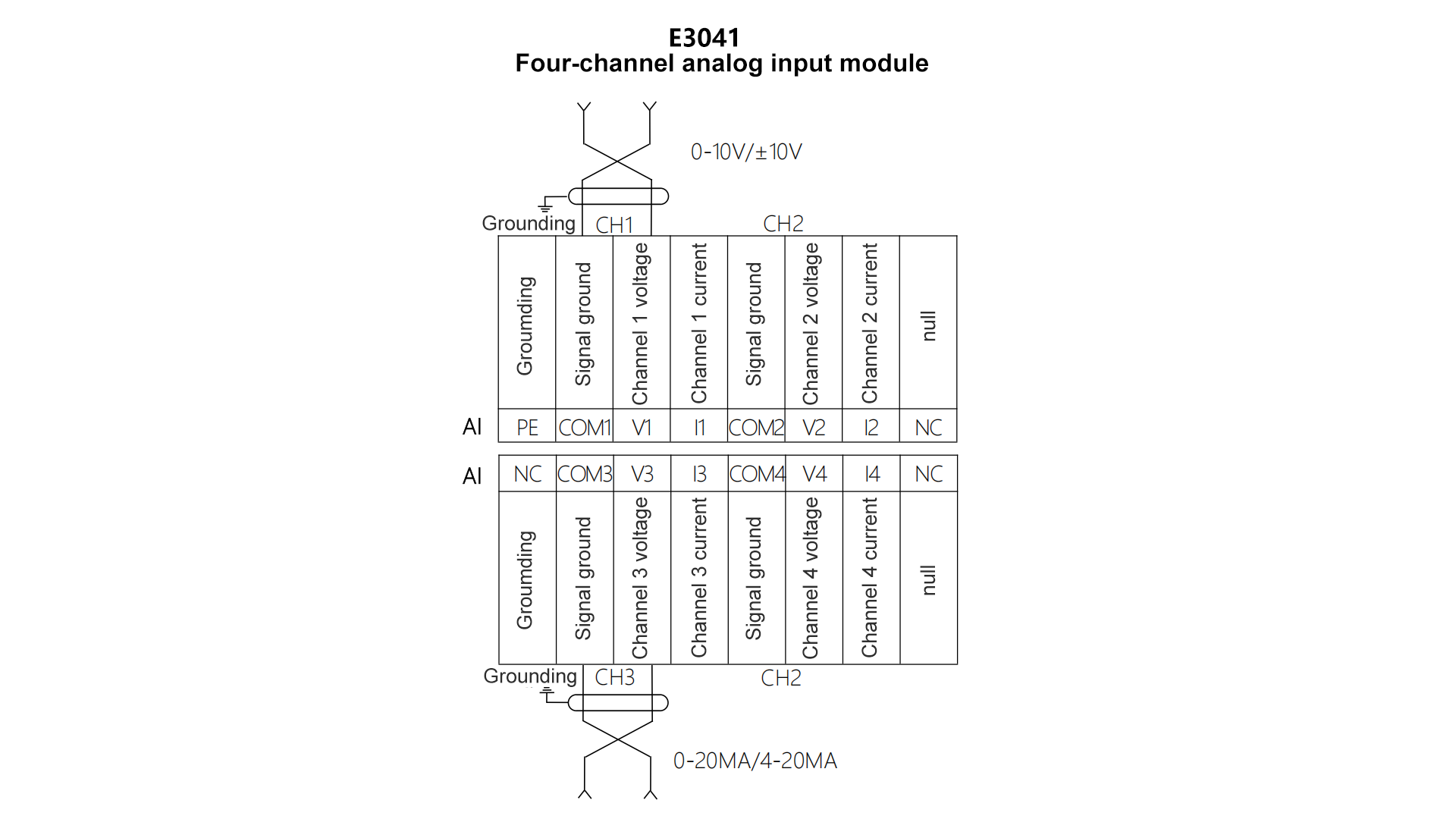

Input Channel: 4
Input Type: Current type / Voltage type
Resolution: 12 bits (16 bits representation, including sign bit)
Sampling Range (Current): 0~20mA, 4~20mA
Sampling Range (Voltage): 0~10V
Input Impedance: Current sampling ≤ 249Ω, Voltage sampling ≥ 10KΩ
Sampling Error: ±0.3% (full scale)
Sampling Rate: 1ms/each time
Software Filtering: Configurable
