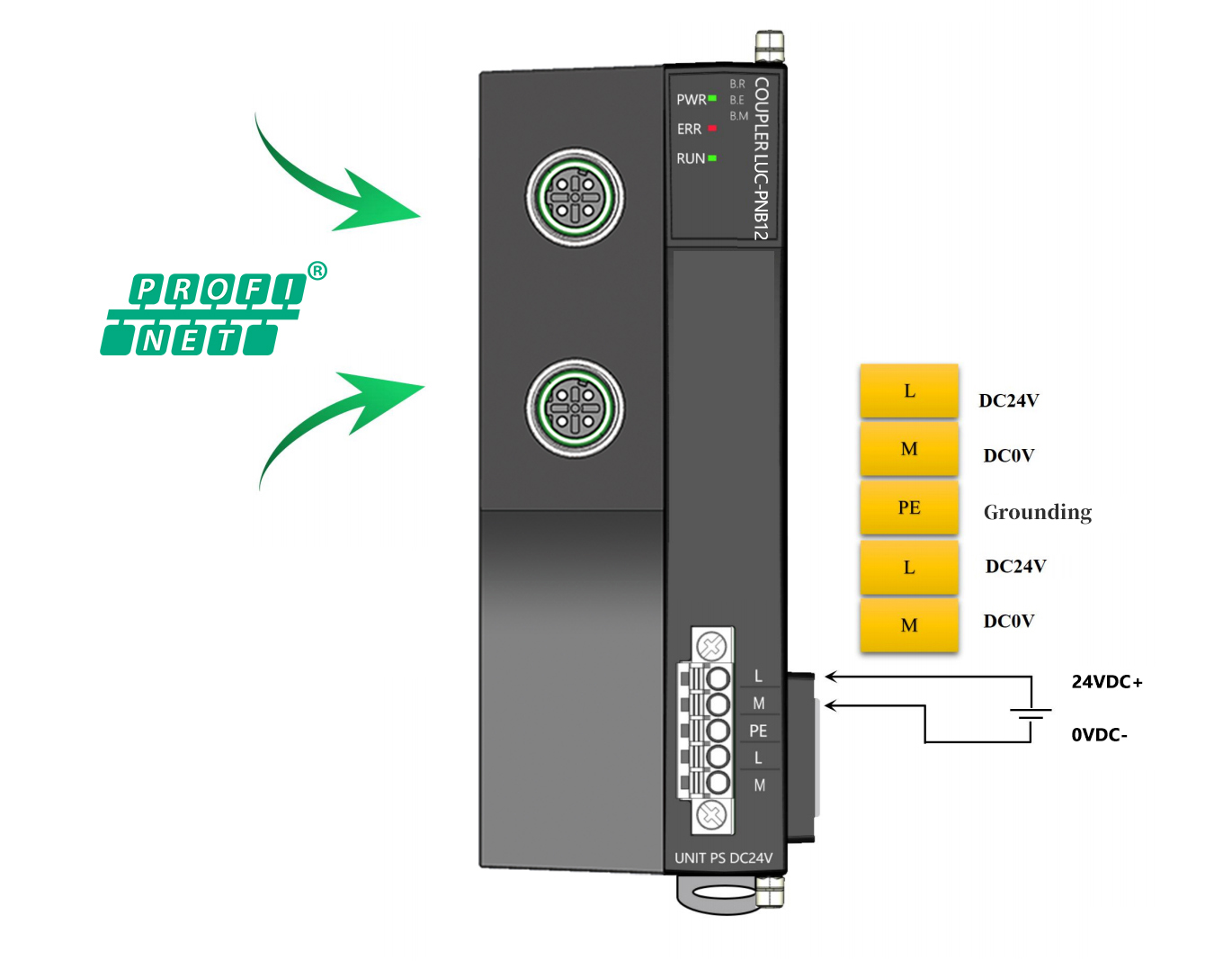

Order Number: LUC-PNB12
Communication Protocol: PROFINET RT
Communication Interface: 2xM12, cascable
Communication Rate: 100M (MAX), adaptive
Addressing Method: Through PROFINET master station software
Working Voltage: 24DC (-15% to +20%)
Working Current: 100mA
Number of Expansion Modules: 32
I/O Capacity: Max. 512 Byte (Input) Max. 512 Byte (Output)
Backplane Voltage: 24VDC
Backplane Current: Max. 2A
Communication Status: Through master station software and LED lights
Short Circuit and Overload Protection: Yes
Fault Diagnosis: Through master station software and LED lights Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature range: -20℃ to +75℃
