Order Number: E8042
Data Rate: Adaptive, (Max) 2M
Addressing Method: Set by the main station software
Module Power Supply: Connected internally to the system
Protection Grade: IP20
Installation Method: DIN35 rail installation or hole drilling installation
Operating Temperature: -20℃ to +75℃

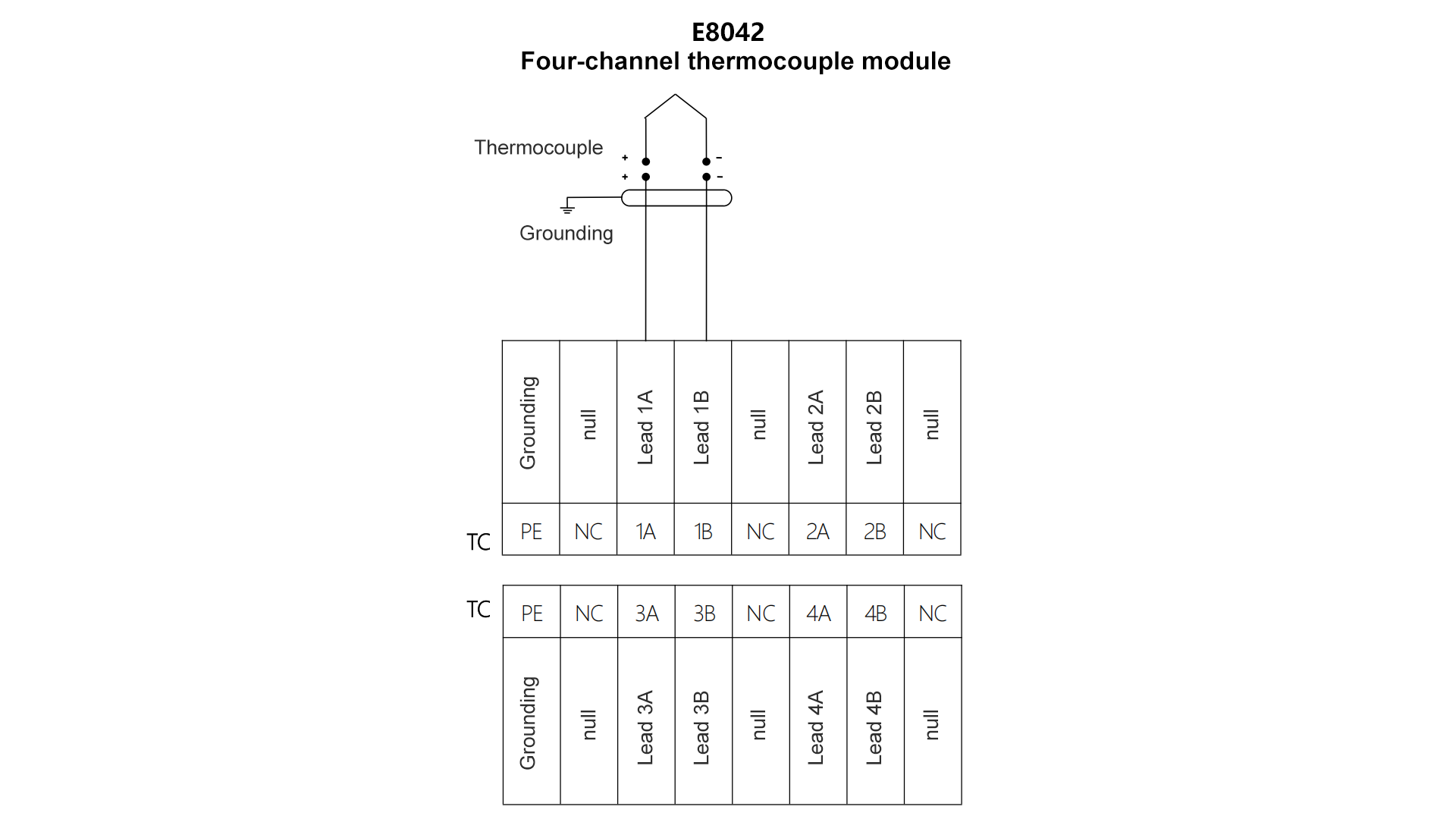

Input channel: 4
Resolution: 12 bits (16 bits for representation, including sign)
Sensor type: K, S, R, B, J, N, E, T
Temperature range: K type: -200 to +1300℃ S type: 0 to +1600℃ R type: 0 to +1600℃ B type: 100 to +1820℃ J type: -200 to -1200℃
N type: -270 to +1300℃ E type: -270 to 1000℃ T type: -200 to +350℃ Data output: 0.1℃ per digit
Sampling error: ±1℃ (full scale)
Sampling speed: 500ms per time
Software filtering: Configurable
