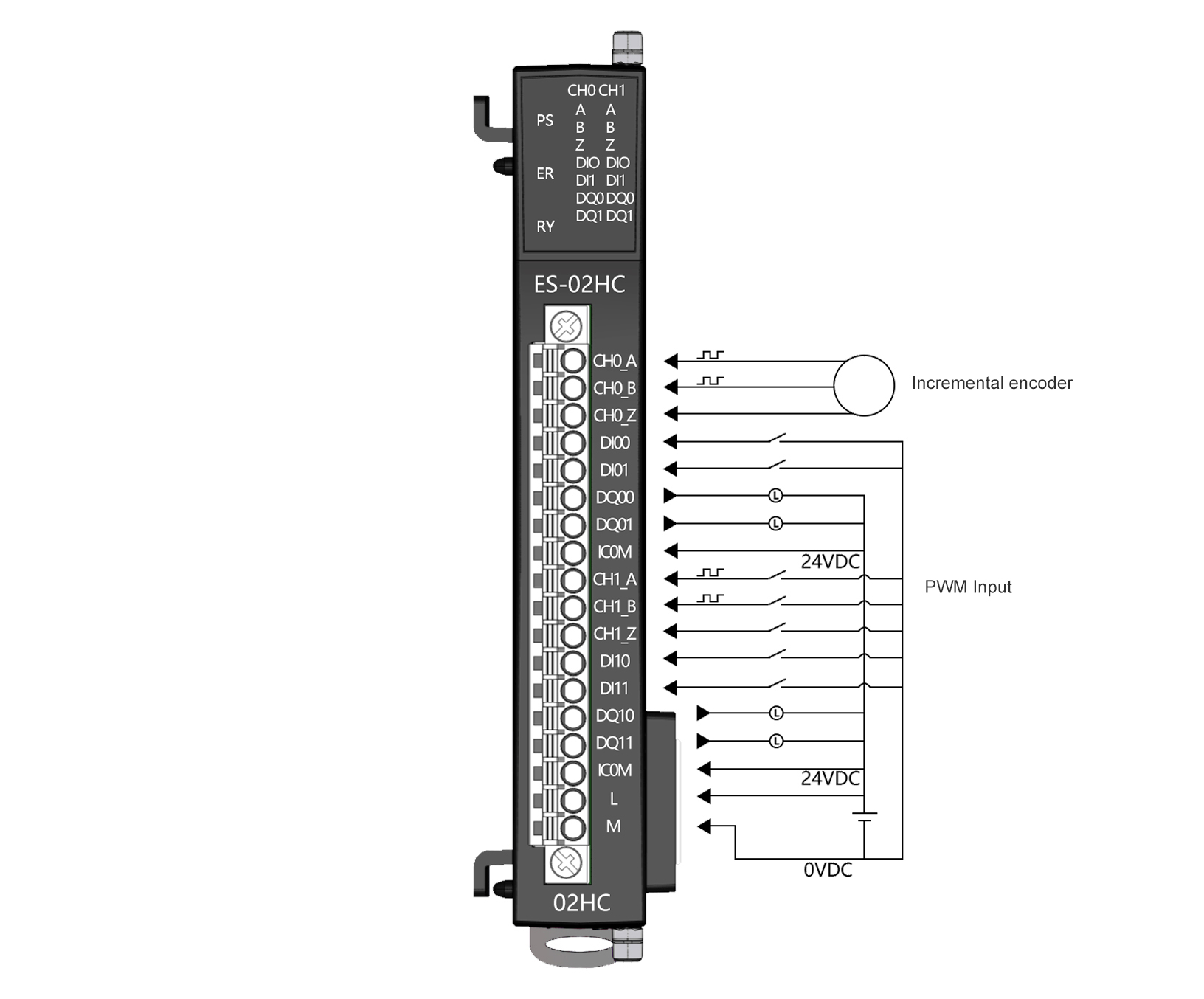

Order Number: ES-02HC
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Pulse input channel number: 2CH
Input type: Incremental encoder, PWM, Switching quantity, NPN type low-level leakage input
Maximum input frequency: 200KHz
Data format: 16-bit signed integer (Integer)
Digital input channel number: 2x2CH
Input parameters: NPN type low-level leakage input
Input function: Can be configured as single counting, AB phase counting, digital input, and input filtering can be configured
Digital output channel number: 2x2CH
Output parameters: Max. 0.5A/CH, independent short-circuit protection per channel, NPN type low-level output (NPN)
Output function: Can be configured as comparison output in counting mode or ordinary digital output
Application scenarios: Used for counting requirements of encoders, optical/magnetic scale rulers, and various sensors
