Order Number: ES-02MB-422
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Communication channels: 2
Baud rate (kbps): 4800, 9600, 19200, 38400, 57600, 115200, 256000
Parity and stop bits: Adjustable

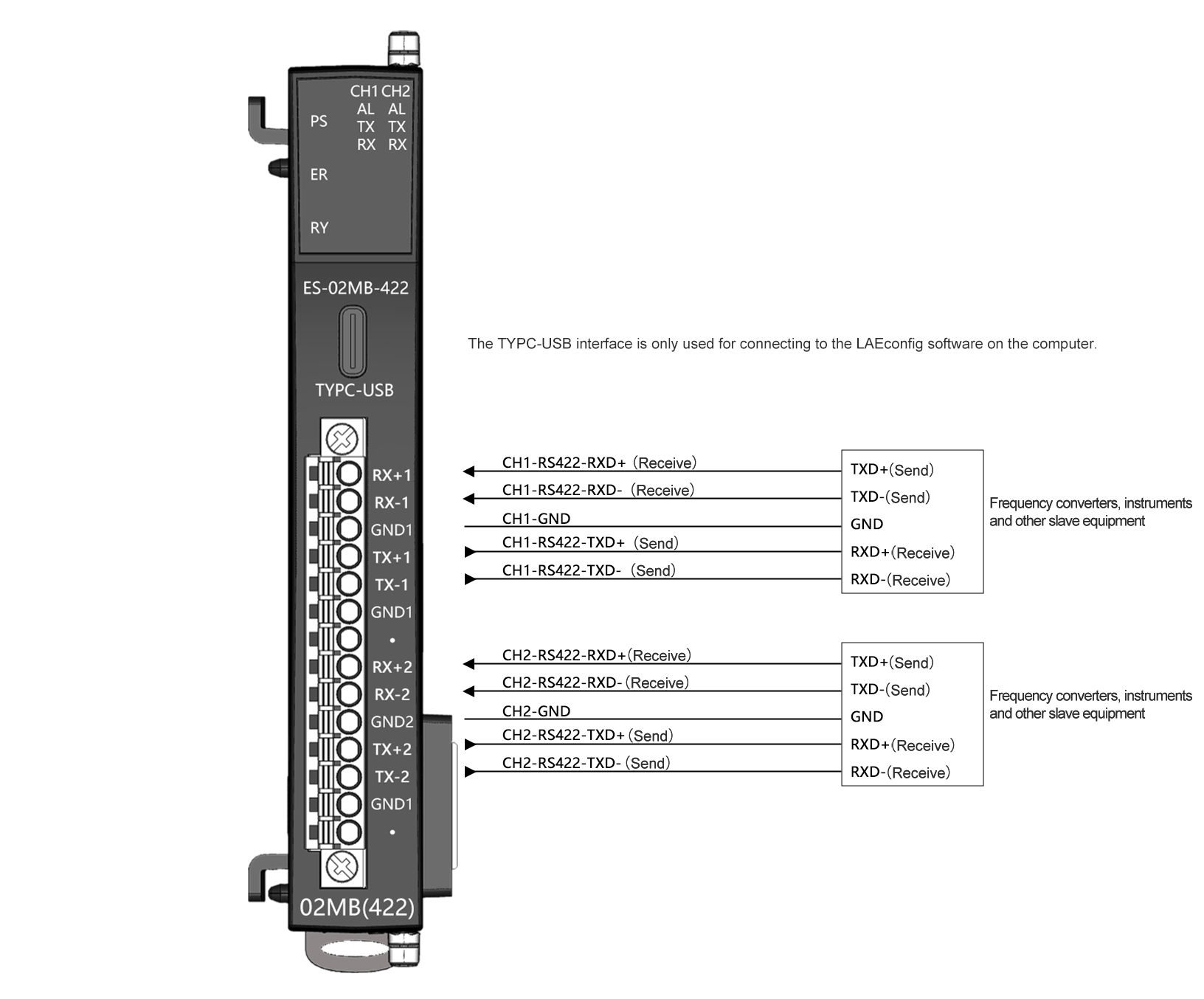

Channel type: RS422 (full duplex)
Terminal resistance: Controlled by software
Communication protocol: Modbus RTU master protocol & free protocol
Maximum data: 128 bytes for receiving data, 128 bytes for output data
Message quantity: 32
Function codes: 01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H
Configuration tool: Set through LAE_Config software
