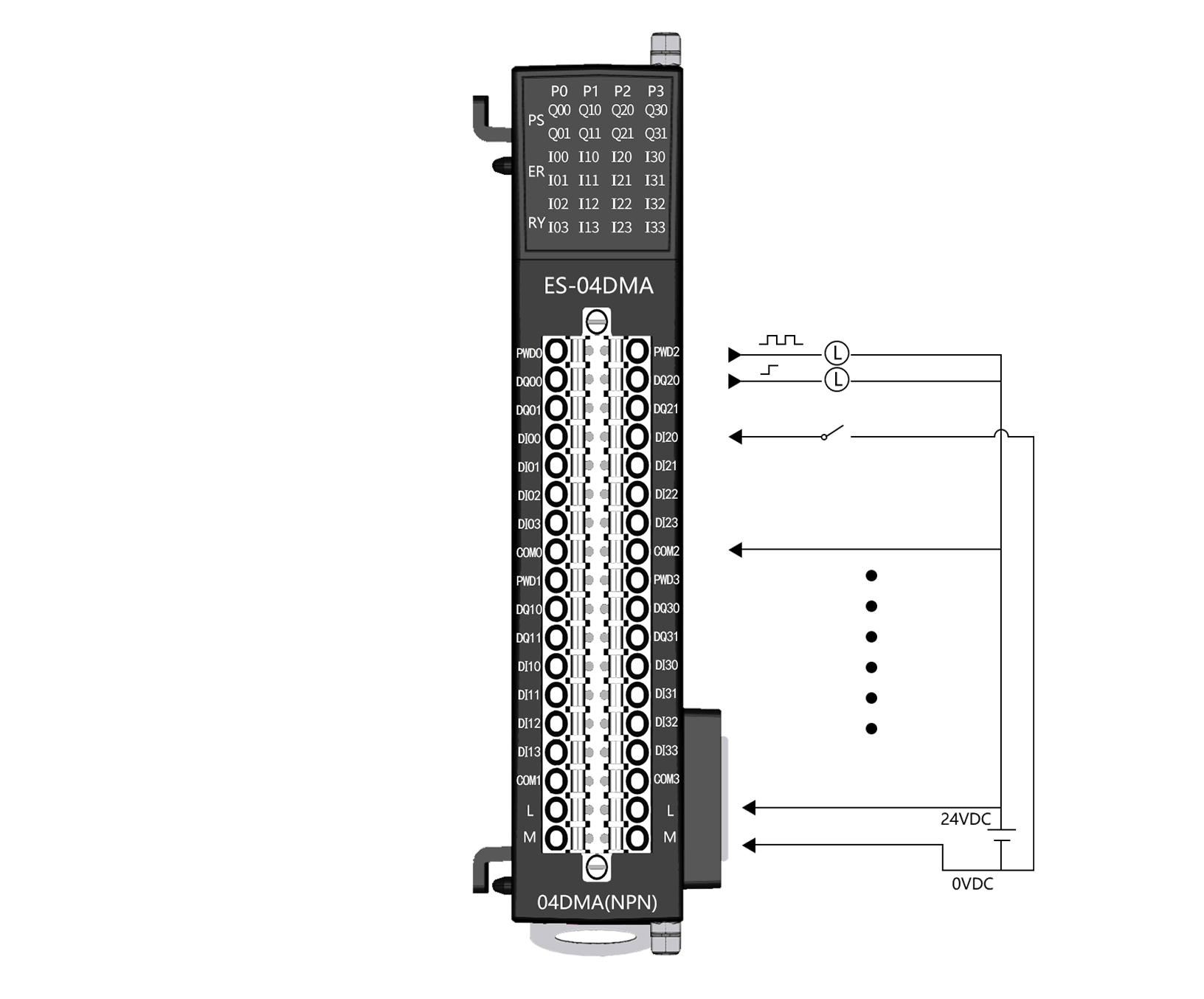

Order Number: ES-04DMA
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Pulse output channel count: 1x4CH
Output type: Drain-type low-level output (NPN)
Rated output voltage: 24VDC (-15% + 20%)
Connector: European plug-in spring terminal
Maximum output current: MAX. 0.5A/CH, independent short-circuit protection for each channel
Maximum output frequency: 200KHz/channel
Functions: Origin return, left and right limits, T-curve acceleration/deceleration, S-curve acceleration/deceleration
Number of digital input channels: 4x4CH
Input type: Drain-type low-level NPN input
Rated input voltage: 24VDC (-15% to +20%)
Input functions: Can be configured as digital input, pulse stop, left limit, right limit, zero point, near zero point according to wiring configuration.
Number of digital output channels: 2x4CH
Output type: Drain-type low-level output (NPN)
Rated output voltage: 24VDC (-15% to +20%)
Maximum output current: MAX. 0.5A/CH, each channel has independent short-circuit protection
Output functions: Can be configured according to wiring as direction output, reverse direction output, digital quantity output, or digital quantity reverse direction output
Applicable scenarios: Used for stepper motor drivers, servo drivers, flow valve control, etc.
