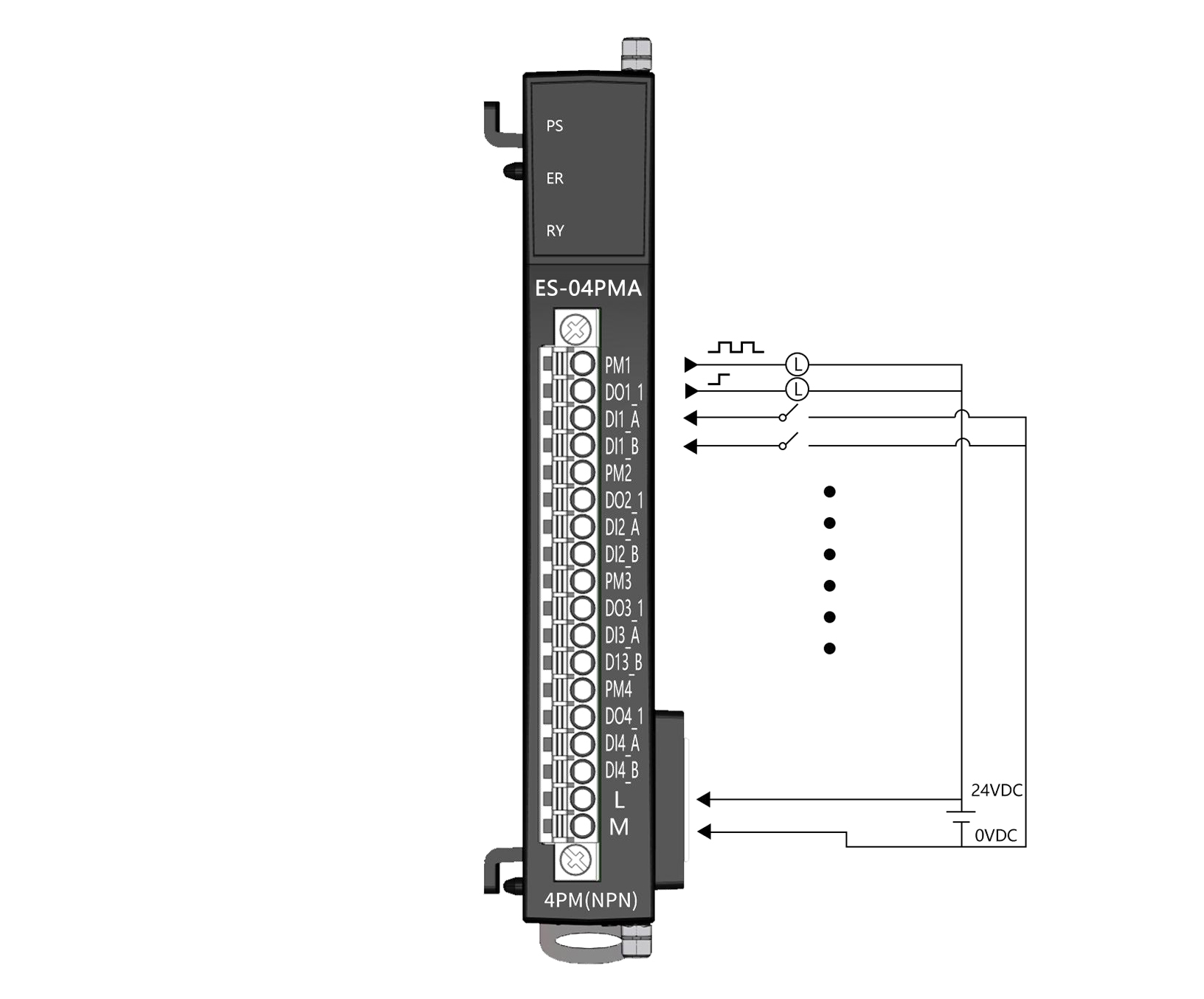

Order Number: ES-04PMA
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Pulse output channel count: 1x4CH
Output type: Drain-type low-level output (NPN)
Rated output voltage: 24VDC (-15% to +20%)
Output connector: European plug-in spring terminal
Maximum output current: MAX. 0.5A/CH, independent short-circuit protection for each channel
Maximum output frequency: 200KHz/channel
Duty cycle: Process data adjustable
Data format: 32-bit pulse quantity and 32-bit pulse frequency
Digital input channel count: 1x4CH
Input type: Drain-type low-level input (NPN)
Rated input voltage: 24VDC (-15% to +20%)
Input function: Can be configured as high-speed pulse start-up trigger and stop, or used as ordinary input IO.
Number of digital output channels: 2x4CH
Output type: Drain-type low-level output (NPN)
Rated output voltage: 24VDC (-15% to +20%)
Maximum output current: MAX. 0.5A/CH, each channel has independent short-circuit protection
Output functions: Configurable as high-speed pulse state output, direction output, alarm output or ordinary output IO usage
Applicable scenarios: Used for stepper motor drivers, servo drivers, flow valve control, etc.
