Order Number: ES-1160D
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Digital input points: 16

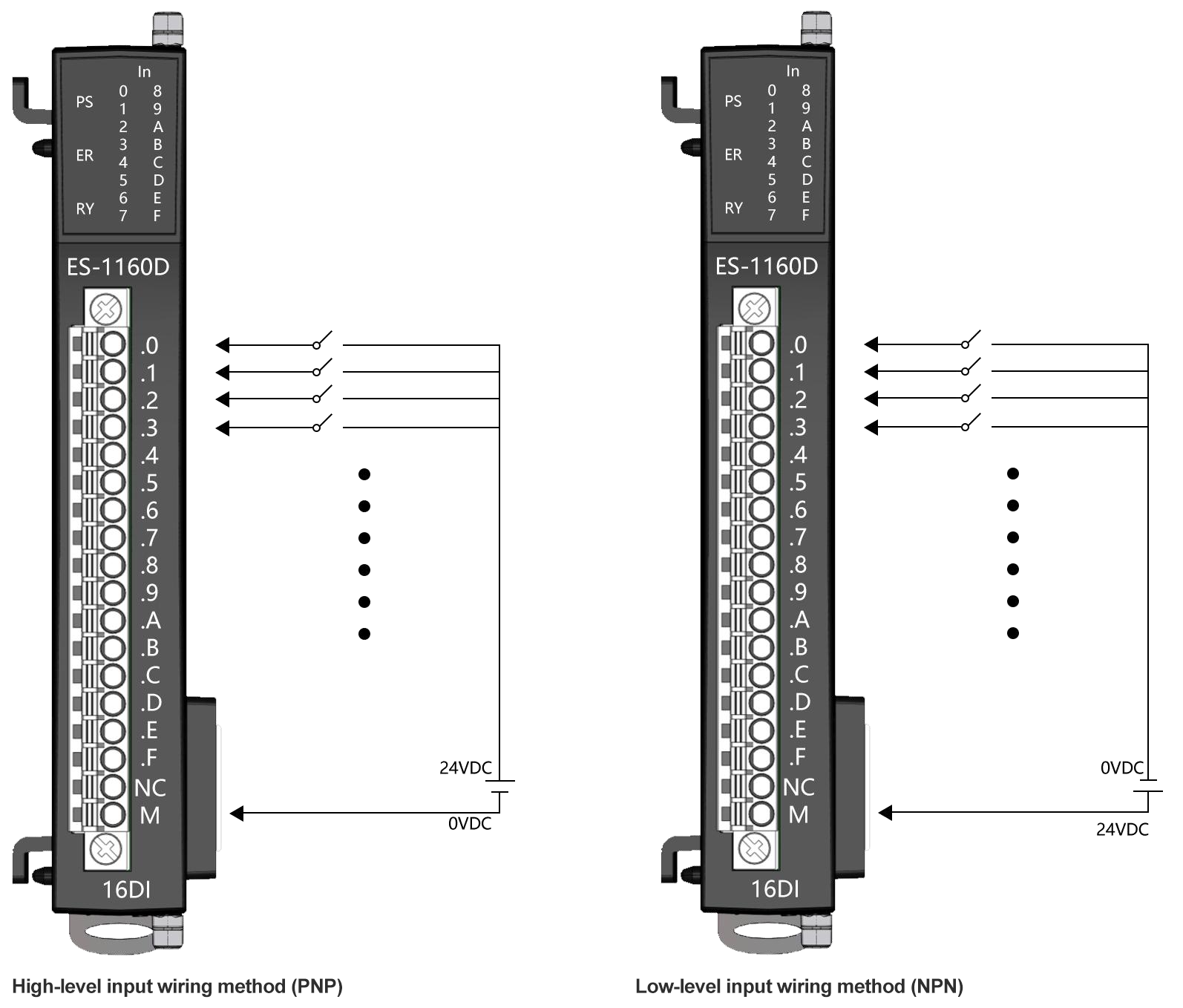

Input type: PNP & NPN
Rated input voltage: 24VDC (-15% to +20%)
Logic "1" signal: 15~30V
Logic "0" signal: -3~5V
Input filtering: Minimum 2ms (factory default 5ms)
Electrical isolation: 500VDC between input and internal communication
Connection method: Two-wire or three-wire system
