Order Number: ES-2163D
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Digital output points: 16
Output type: Relay
Load type: Resistive load, inductive load, lamp load
Maximum switching current: 5A
Maximum switching voltage: 250VAC/30VDC
Maximum switching power: 1250VA/150W
Electrical durability: 1x10^5 times (AgNi+ gold plating, 0.5A 125VAC, resistive load, 40℃, 1s on 9s off)
Electrical isolation: 500VDC between output and internal communication

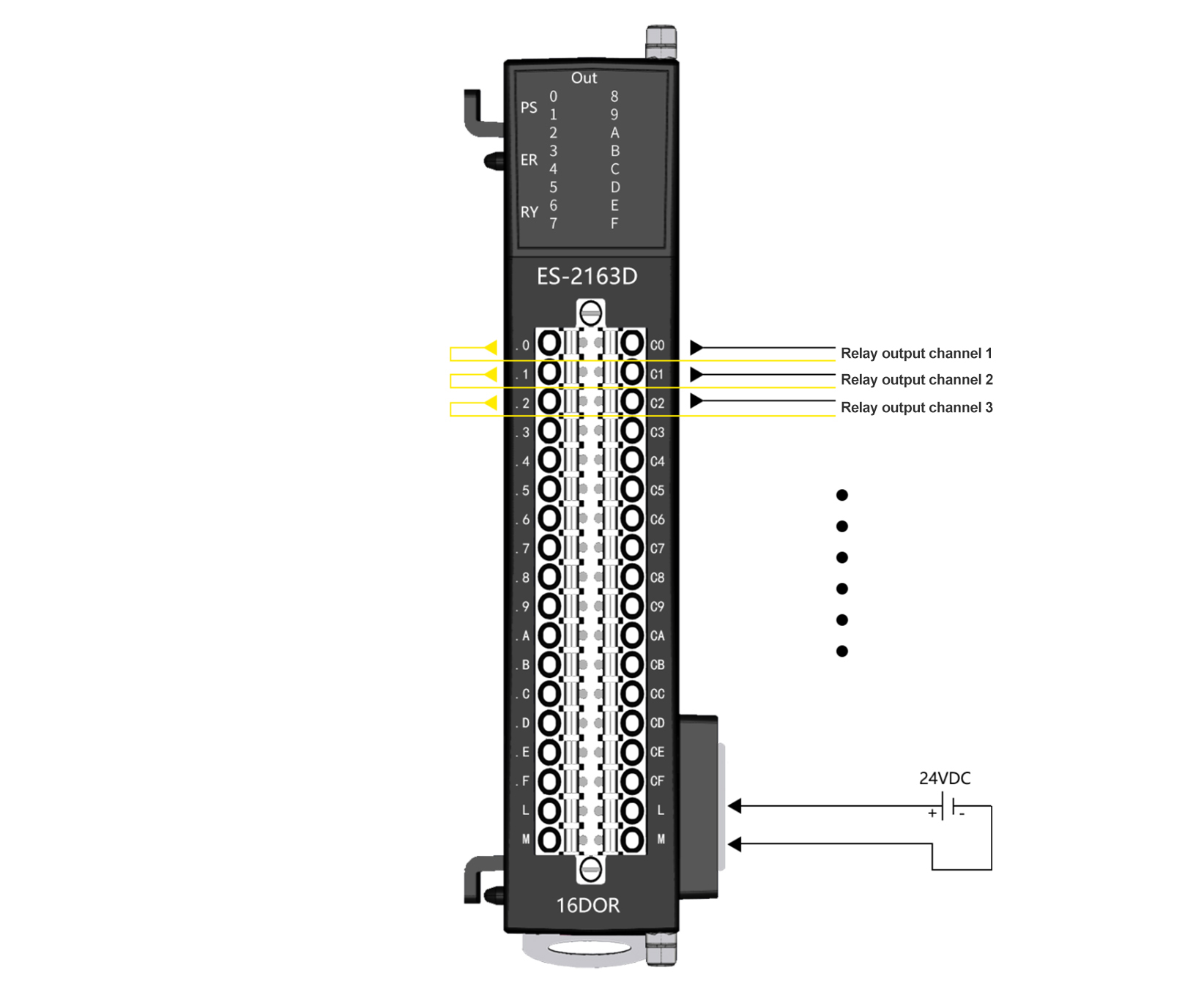

Connection method: Two-wire system
