Order Number: ES-2322D
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Digital output points: 32

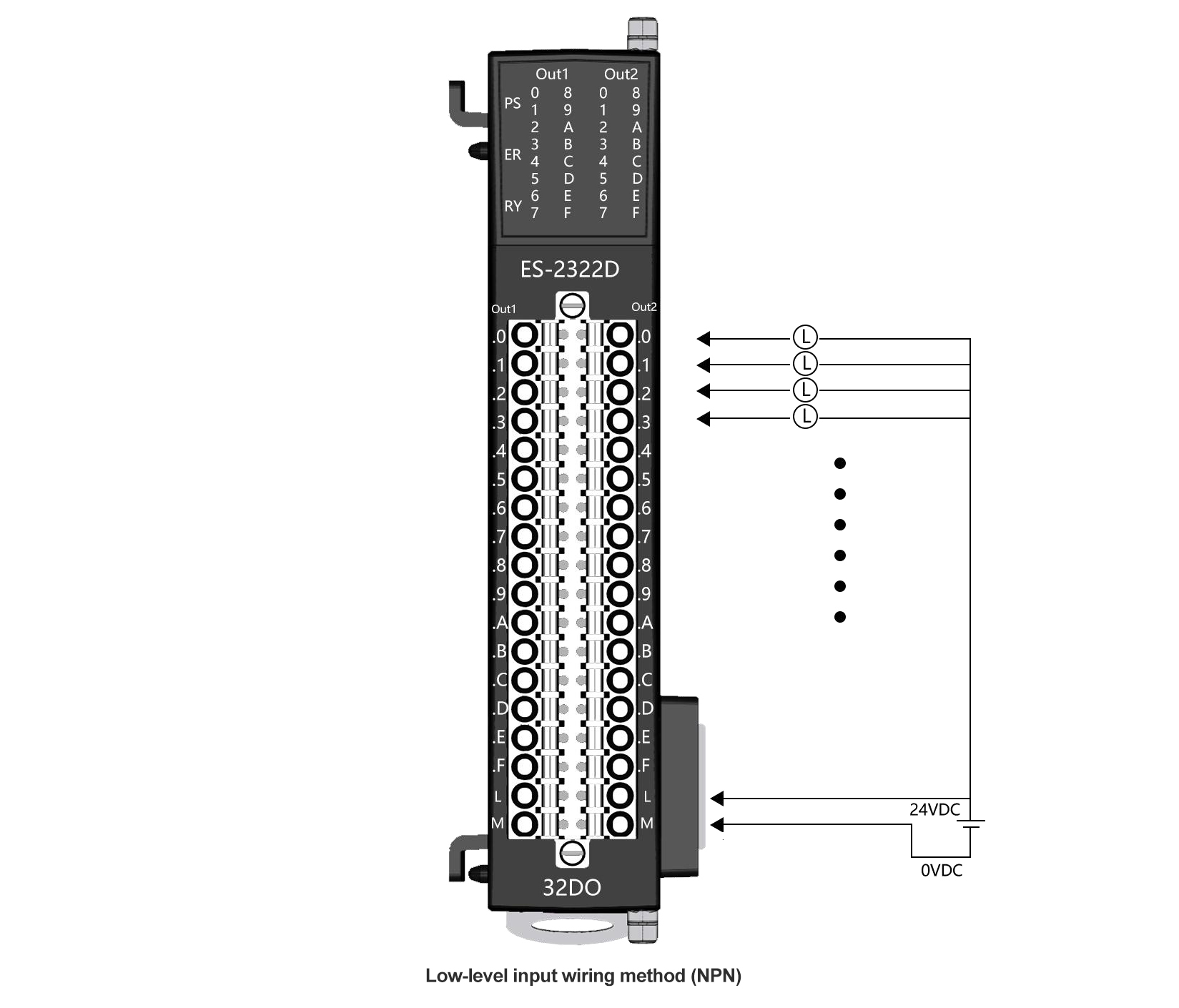

Output type: NPN
Rated output voltage: 24VDC (-15% to +20%)
Maximum output current: Max. 0.5A per channel (short-circuit protection and overload protection)
Load type: Resistive load, inductive load, lamp load
Electrical isolation: 500VDC between output and internal communication
Connection method: Two-wire system
