Order Number: ES-3026B
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Number of weighing channels: 2
Calibration mode: Weight calibration / non-calibration mode

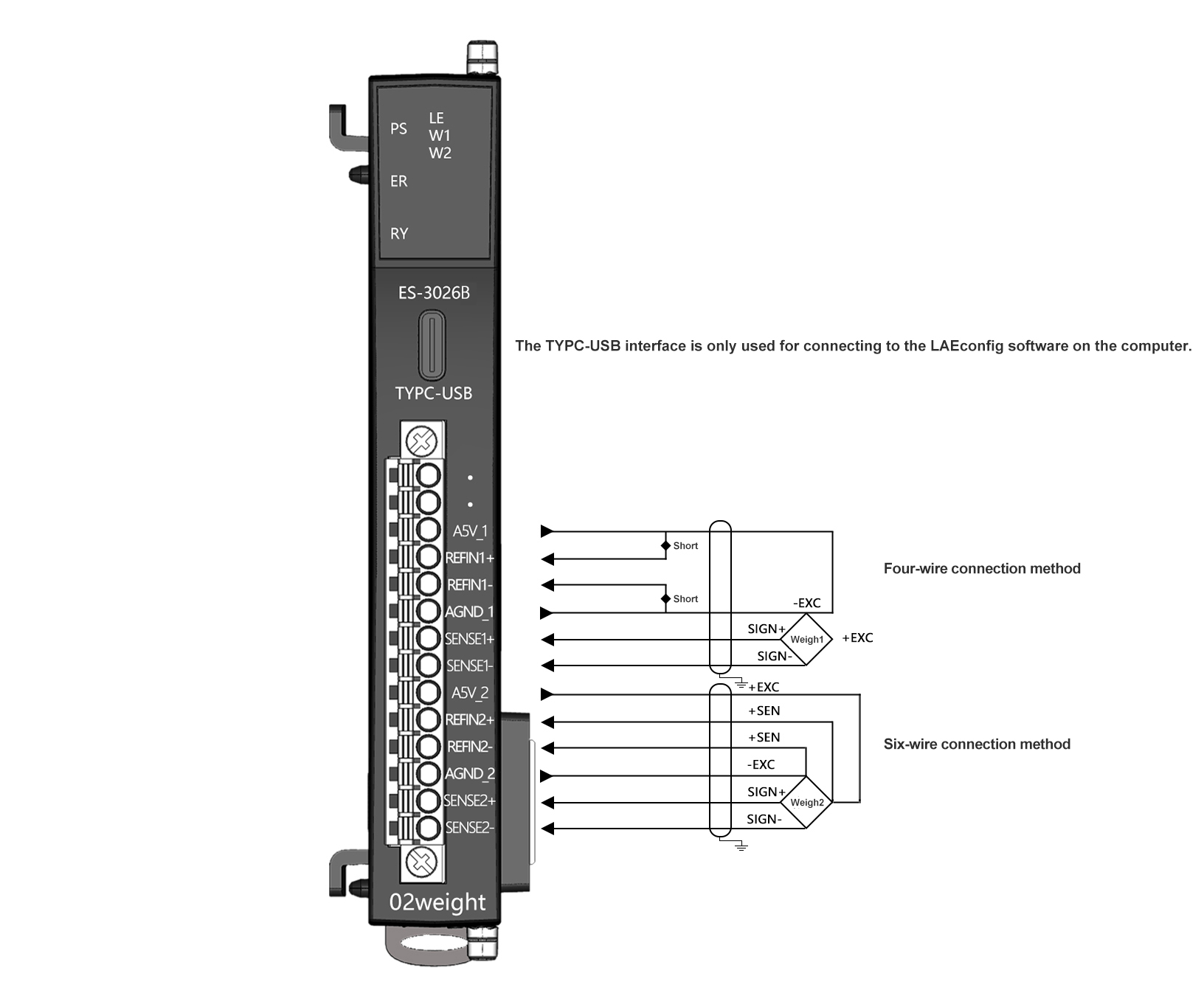

Sensor type: 4-wire, 6-wire
Excitation voltage: 5VDC, 10VDC
Measurement error: ≤ ±0.05%
Correction form: Weight calibration, zero point and full scale correction; multi-point (3, 4 or 5 points) linear correction
Sampling period: 200ms
ADC resolution: 24 bits
Weighing unit: G, KG, T
Power-on settings: Power-on reset, power-on reset to default values
