Order Number: ES-3047A
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Number of temperature input channels: 4

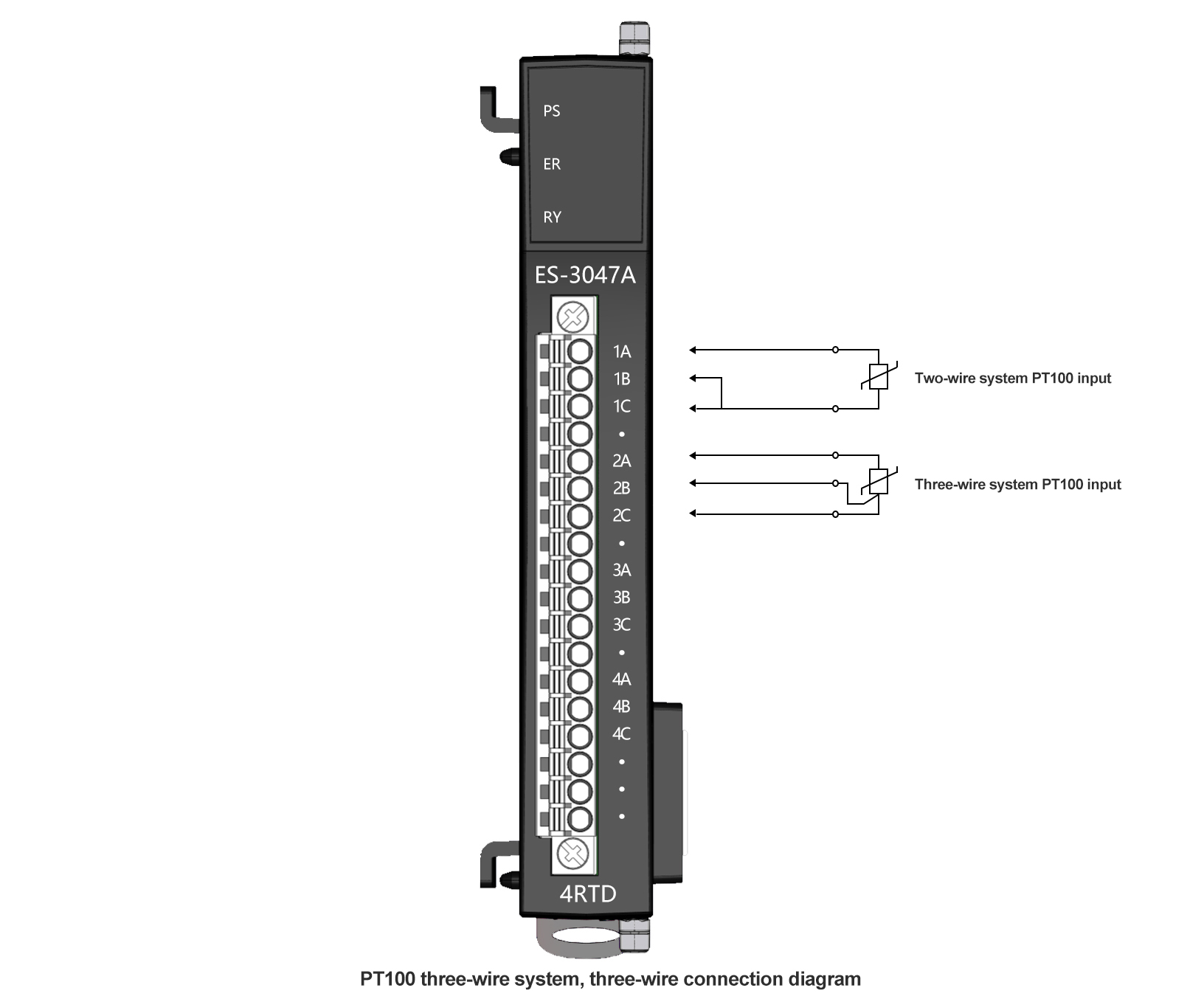

Connection method: Four-wire system / Three-wire system / Two-wire system (default: four-wire system)
ADC resolution: 16 bits (including sign)
Sampling rate: 500ms per time
Sampling error: ±0.5℃ (full scale)
Software filtering: Configurable
Sensor type: Thermal resistance PT100, Cu50
Temperature range: -200℃ to +850℃ (PT sensor), -60℃ to +250℃ (Ni sensor)
Data output: 0.1℃ per digit
