Order Number: ES-3048A
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Number of temperature input channels: 4

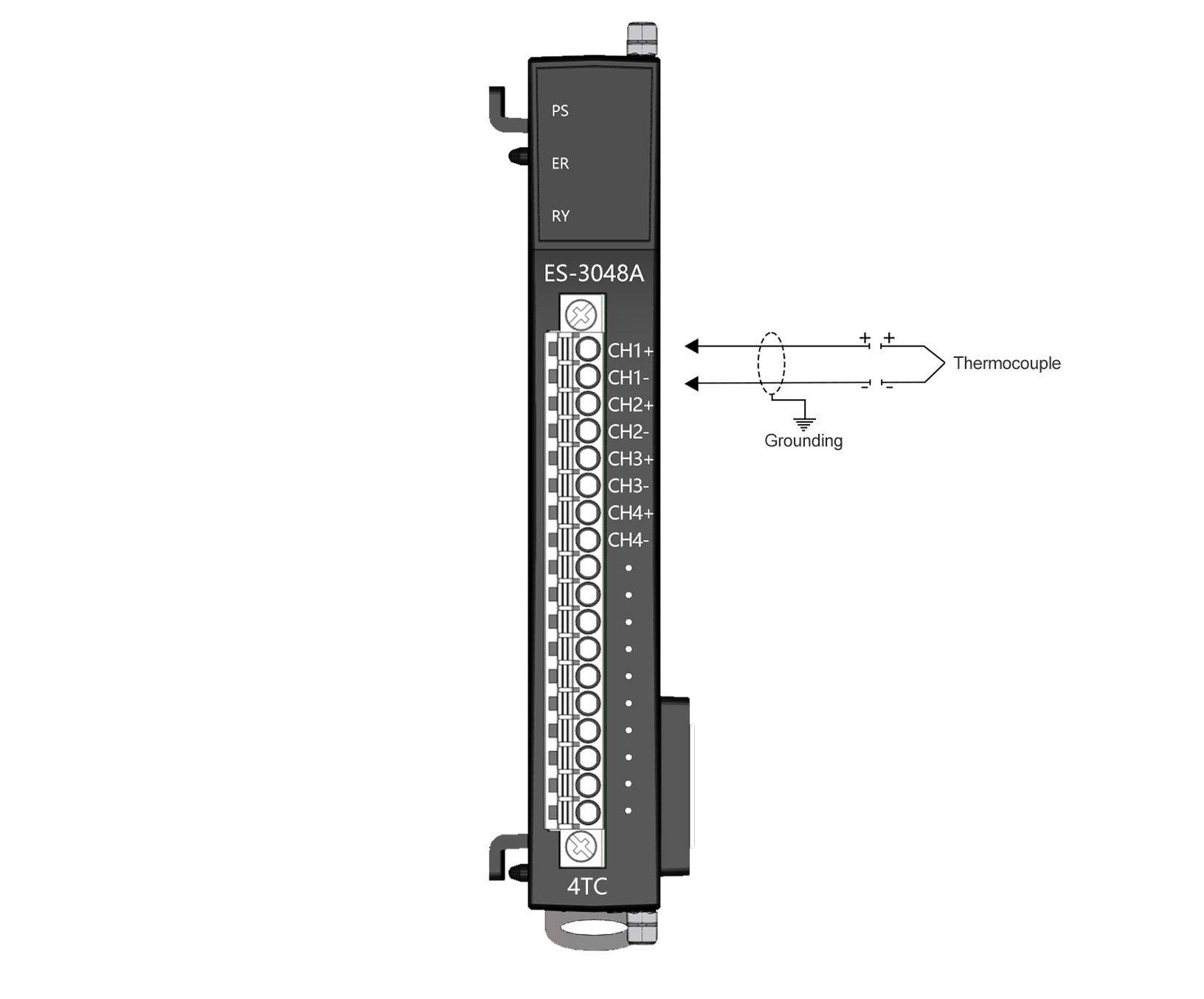

Connection method: Two-wire system
ADC resolution: 16 bits (including sign)
Sampling rate: 500ms per time
Sampling error: ±0.5℃ (full scale)
Software filtering: Configurable
Sensor type: Thermocouple: K, S, R, B, J, N, E, T
Temperature range: K type: -200 to +1300℃ S type: 0 to +1600℃ R type: 0 to +1600℃ B type: 100 to +1820℃ J type: -200 to -1200℃
N type: -270 to +1300℃ E type: -270 to 1000℃ T type: -200 to +350℃ Data output: 0.1℃ per digit
