Order Number: ES-3081A
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃
Number of analog input channels: 8

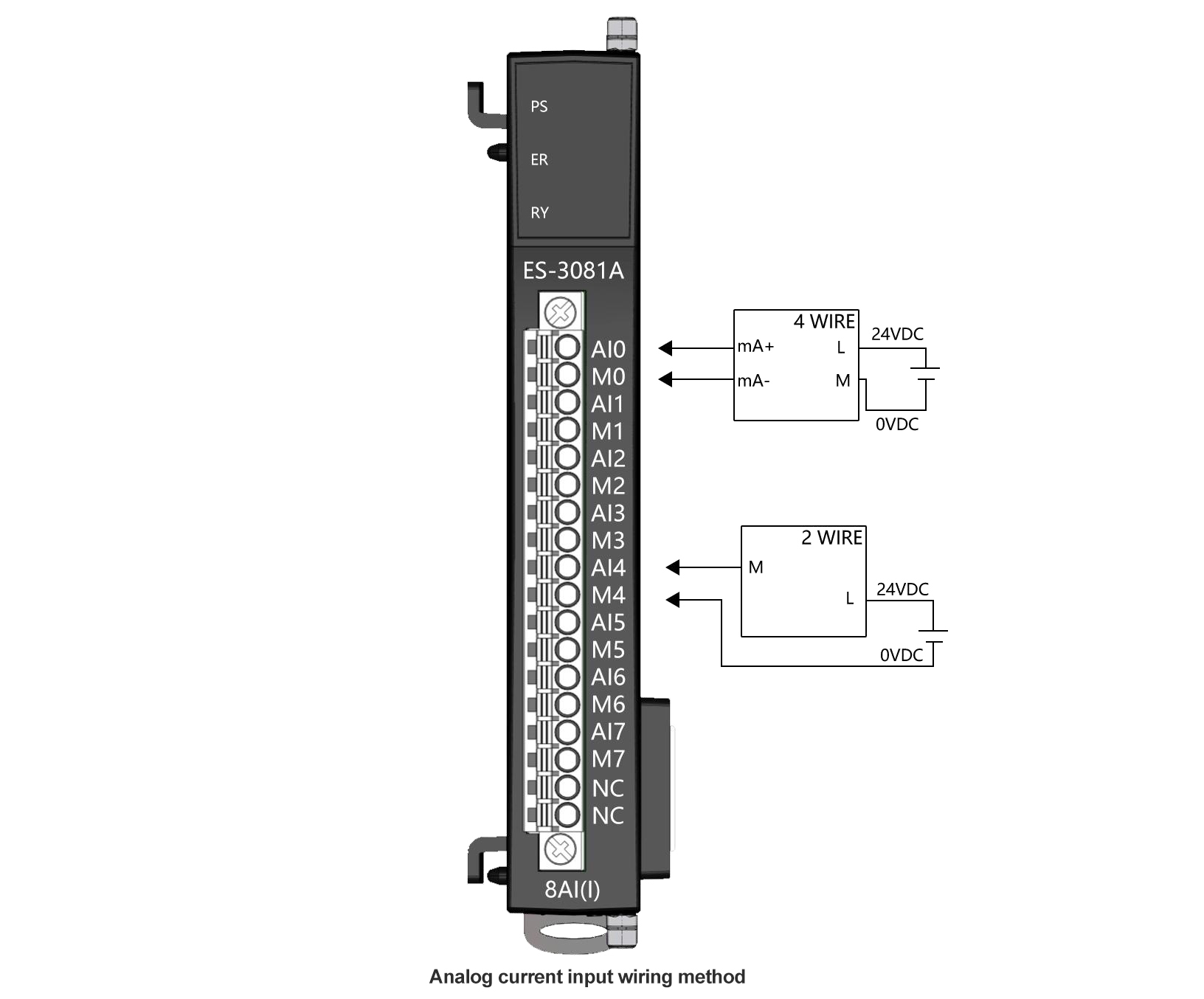

Input type: Current type
Sampling range: 0~20mA / 4~20mA
Resolution: 16 bits (including sign)
Rated input voltage: 24VDC (-15% to +20%)
Input impedance: Current sampling ≤ 125Ω, voltage sampling ≥ 10MΩ
Sampling accuracy: ±0.1% (full scale)
Sampling rate: 1ms per time
Breakdown diagnosis: When type 4~20mA is selected, output -27648
Software filtering: Configurable
