Order Number: ES-4043A
System Power Supply: Connected internally within the system
Current Power Consumption: 20mA
Protection level: IP20
Installation method: DIN35 rail installation
Operating temperature: -20℃ to +75℃

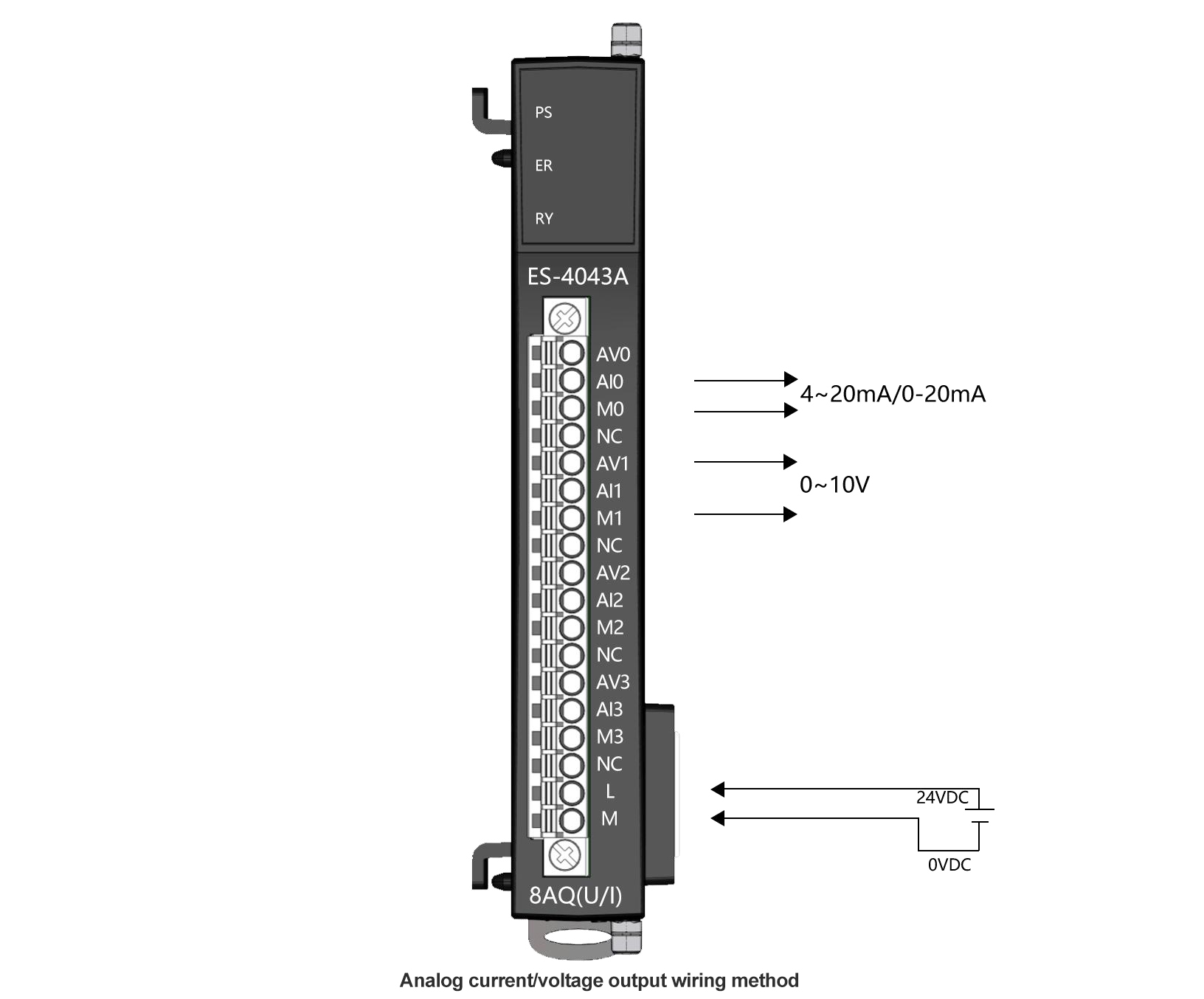

Number of analog output channels: 8
Output types: Current type & Voltage type
Output range: 0~20mA / 4~20mA / 0~10V
Resolution: 16 bits (including sign)
Rated output voltage: 24VDC (-15% to +20%)
Load: Current output ≤ 500Ω, Voltage output ≥ 1KΩ
Output accuracy: ±0.1% (full scale)
Output speed: 1ms per time
