Order Number: IOL20-0016N-HUB

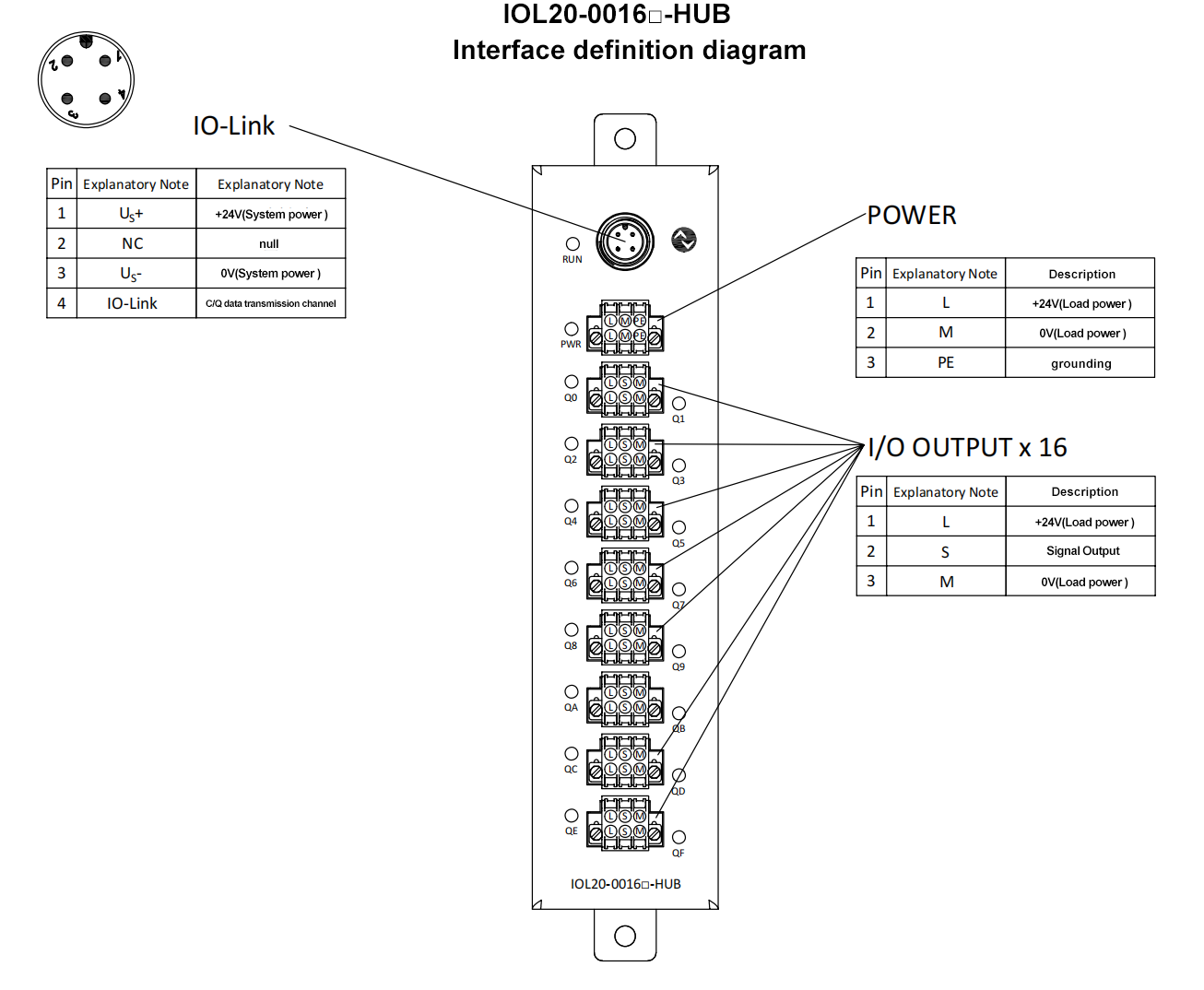

Communication Interface: 1xClassA, M12, A-Code, 4-pin
Power Interface: Green, 2*3P European plug-in spring terminals, with locking function
Signal Interface: Black, 2*3P European plug-in spring terminals, with locking function
Operating Voltage: 24V DC (-15% to +20%)
Operating Current: 20mA
Communication Protocol: IO-Link V1.1
Communication Rate: COM2 (38.4KBPS)
Addressing Method: Configured through the main station software
Protection Level: IP20
Installation Method: Drilled installation
Operating Temperature: -20℃ to +75℃
Digital output points: 16
Output type: Transistor/NPN
Load type: Resistive load, inductive load, lamp load
Rated voltage: 24VDC (-15% to +20%)
Maximum output current: 0.5A per channel
Insulation: 500V DC between output and internal communication
Port protection: Overvoltage, overcurrent protection, reverse current protection
