Order Number: JP-D0008R-PN
Bus Interface: 2xRJ45, Supports Cabling
Power Interface: 3P European terminals, with screw locking, tool-free crimping

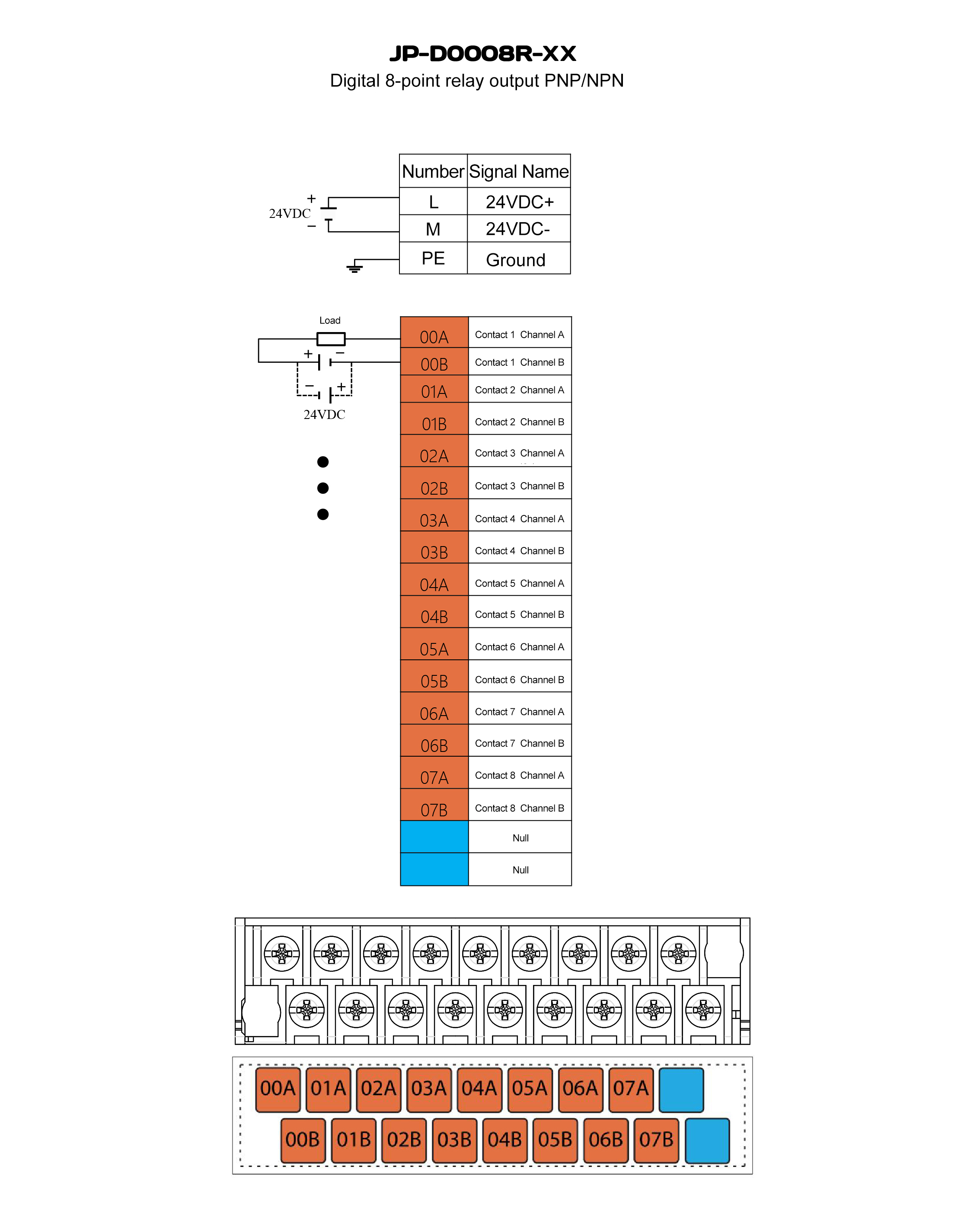

I/O Terminals: 18P fence-style screw terminals
Operating Voltage: 24V DC (-15% to +20%)
Operating Current: 150mA
Communication Protocol: PROFINET RT
Communication Rate: 100M (Max), Adaptive
Addressing Method: Through PROFINET Master Station Software
Protection Level: IP20
Installation Method: DIN35 Rail Installation or Hole Installation
Operating Temperature: -20℃ to +75℃
Relay output point: 8
Output type: Relay
Drive capability: 5A 250VAC/30VDC
Load type: Resistive load, inductive load, lamp load
Maximum switching current: 5A
Maximum switching voltage: 250VAC/30VDCT
Maximum switching power: 1250VA/150W
Electrical endurance: 1×105 times (AgNi+ gold plating, 0.5A 125VAC, resistive load, 40°C, 1s on 9s off)
Isolation voltage: 500V
Isolation method: Optocoupler isolation
