Order Number:JP-D0016R-PN
Bus interface: 2xRJ45, supports cascading
Power interface: 3P European terminals with screw locking, tool-free crimping

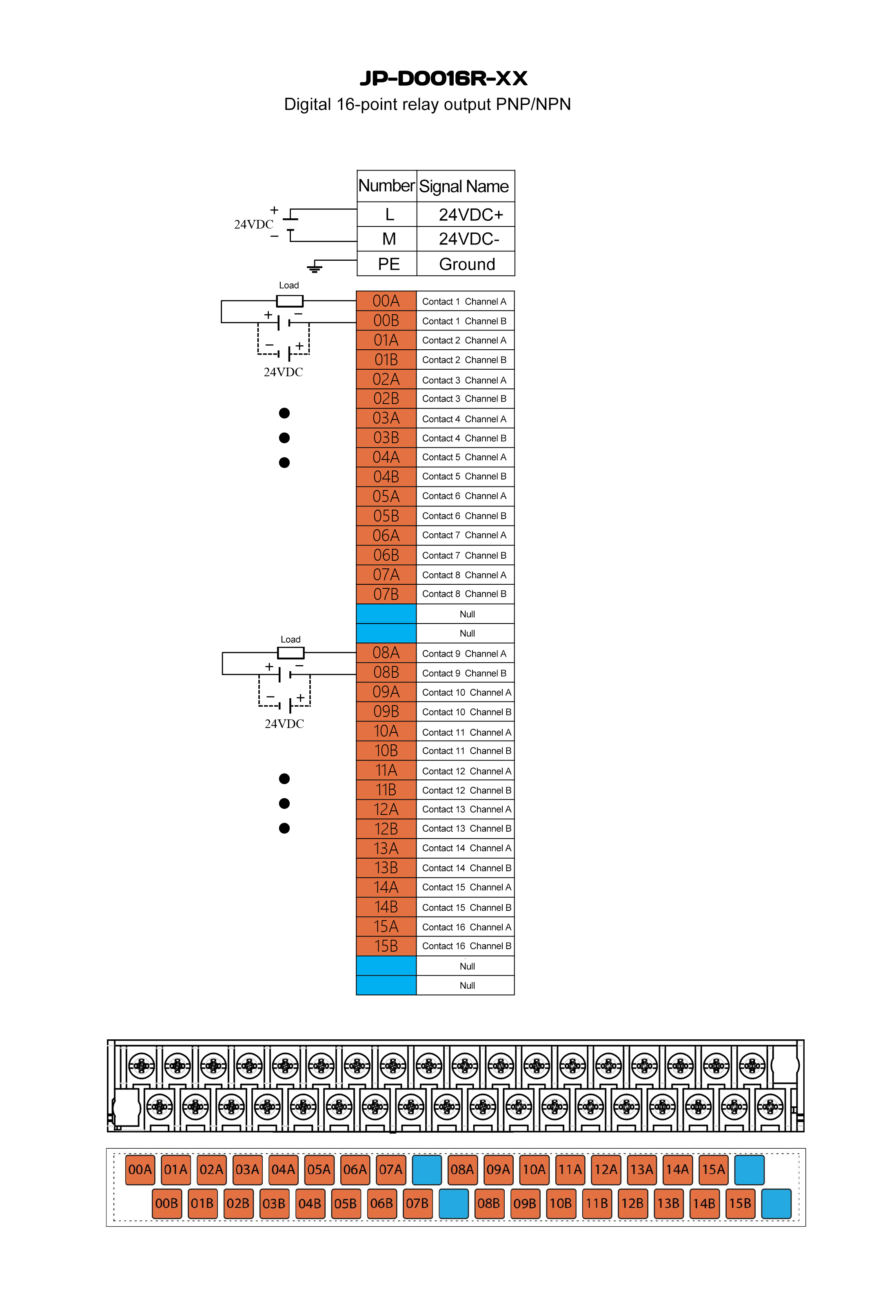

I/O terminals: 18P fence-type screw terminals
Operating voltage: 24V DC (-15% to +20%)
Operating current: 150mA
Communication protocol: PROFINET RT
Communication rate: 100M (Maximum), adaptive
Addressing method: Through PROFINET master station software
Protection level: IP20
Installation method: DIN35 rail installation or hole drilling installation
Operating temperature: -20℃ to +75℃
Relay output points: 16
Output type: Relay
Drive capability: 5A 250VAC/30VDC
Load type: Resistive load, inductive load, lamp load
Maximum switching current: 5A
Maximum switching voltage: 250VAC/30VDCT
Maximum switching power: 1250VA/150W
Electrical endurance: 1×105 times (AgNi+ gold plating, 0.5A 125VAC, resistive load, 40°C, 1s on 9s off)
Isolation voltage: 500V
Isolation method: Optocoupler isolation
