Order Number: M12A-MS-5P-PG7

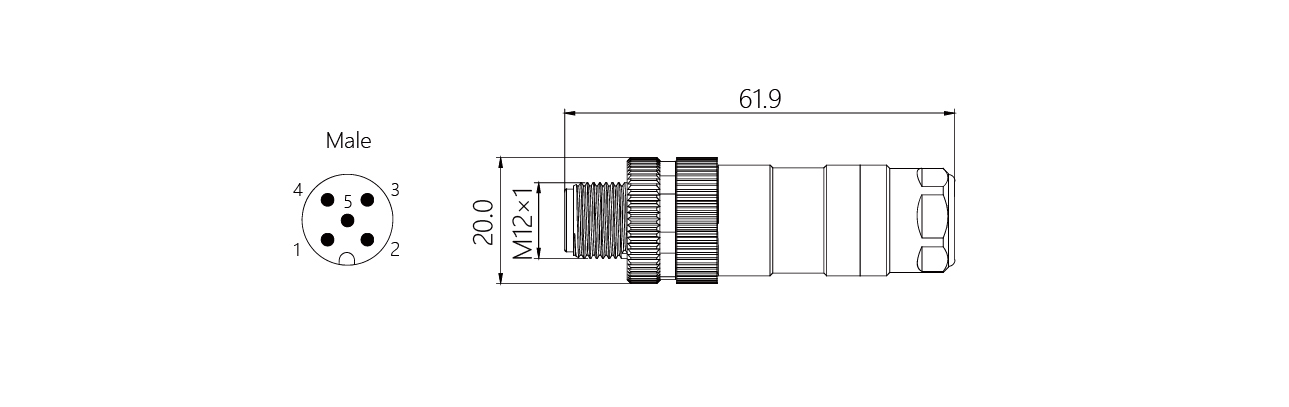

Specification Description: M12 connector, straight pin, screw connection, A-Code
Voltage: 125V DC
Current: 4A
Shell Material: TPU/Black
Locking Nut: Alloy Copper/Gold Plated
Pin Rest Material: TPU + GF/Black
Contact Material: Brass/Gold Plated
Sealing Ring: FPM/FKM
Protection Grade: IP67 (after insertion and tightening) for M12
Wire Cross-sectional Area: 0.14...0.5mm²
Cable Diameter: φ4.0...8.0mm
Pollution Level: 3
Operating Environment Temperature: -40℃...+85℃
Torque: ≥100
Insertion and Ejection Life: 0.6Nm (for M12 plug-type connector)

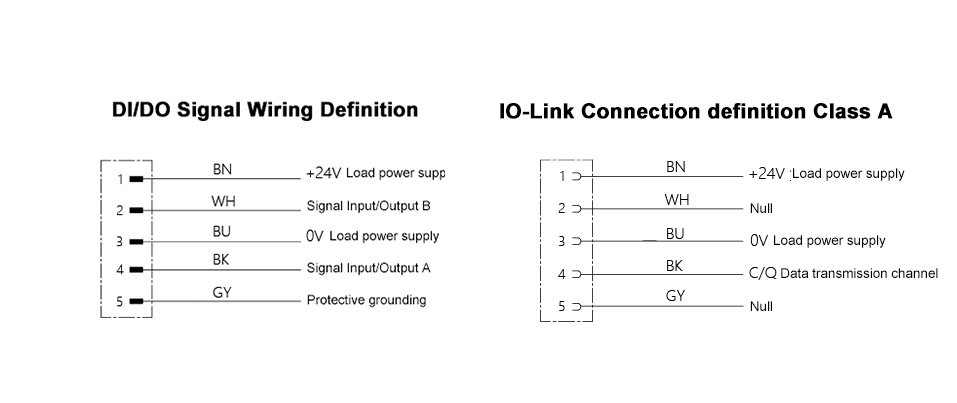

Application Scenarios: Used for M12 interface I/O signal connection or IO-Link communication (master port)
