Order Number: M12L-MS-5P-PG9

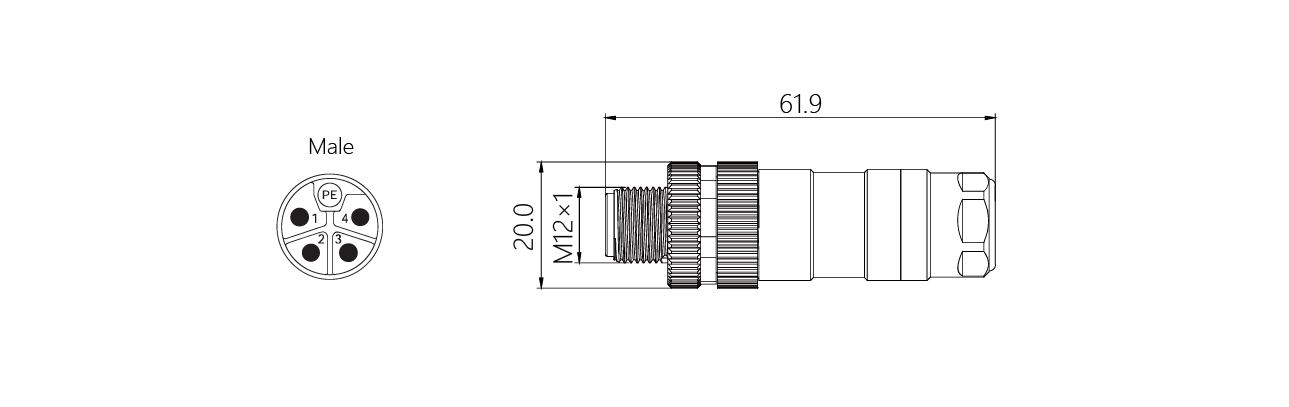

Specification Description: M12 connector, straight pin, screw wiring, L-Code
Series: 5-Pole
Voltage: 63V DC
Current: 12A
Shell Material: PA66/Black
Locking Nut: Alloy Copper/Gold Plated
Pin Rest Material: TPU + GF/Black
Contact Material: Brass/Gold Plated
Sealing Ring: FPM/FKM
Protection Grade: IP67 (after insertion and tightening) for M12
Wire Cross-sectional Area: Max. 1.5mm²
Cable Diameter: φ8.0...10.0mm
Pollution Grade: 3
Operating Temperature Range: -40℃...+85℃
Torque: 0.6Nm (for M12 plug-in connector)
Insertion and Ejection Life: ≥100
Application Scenario: For power supply (Power In) at M12 interface
