Order Number: MRMS0032N-CE
Bus Interface: 2xM12, D-code, supports cascading
Power Interface: Module power supply: 3P European spring terminals; Load power supply: 4P European spring terminals

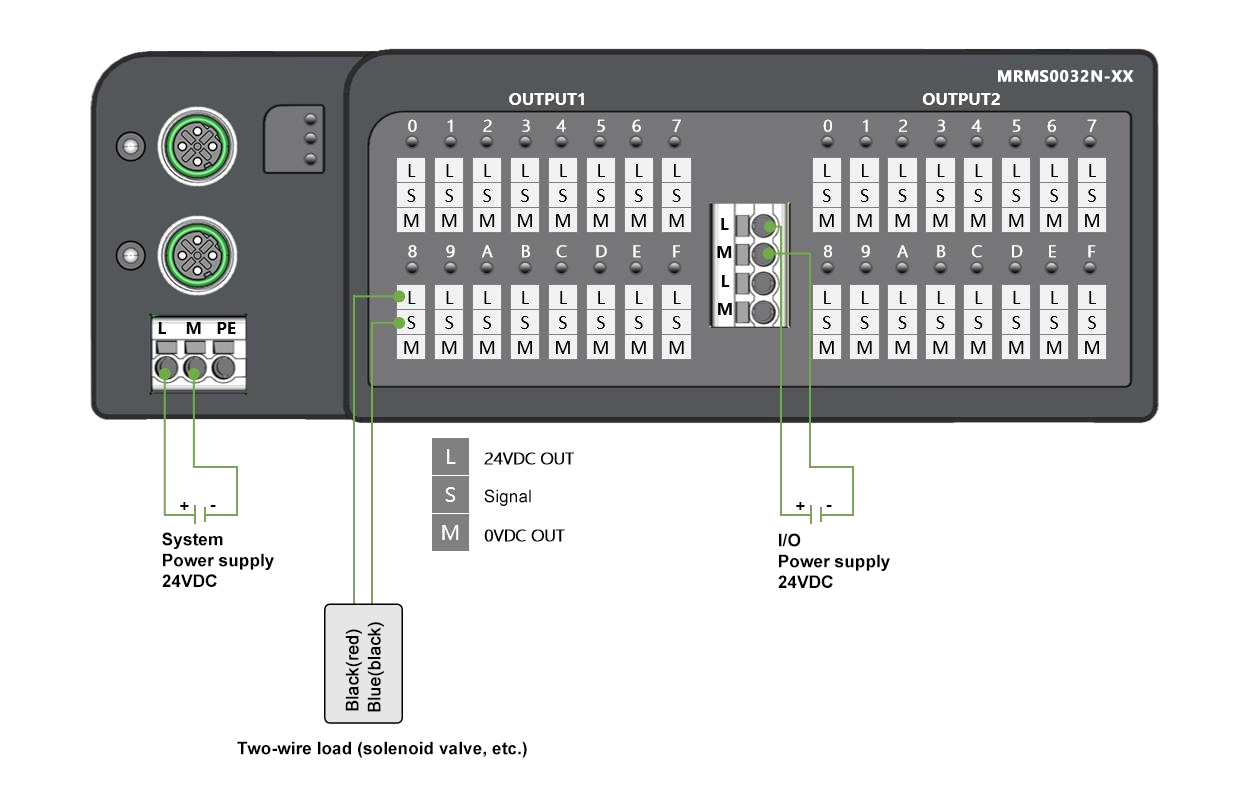

I/O Terminals: 2x3PIN European plug-in spring terminals
Operating Voltage: 24V DC (-15% to +20%)
Operating Current: 150mA
Communication Protocol: CC-Link IE FieldBasic
Communication Rate: 100M (Maximum), Adaptive
Addressing Method: IP address is set through LAE_config software
Protection Level: IP50

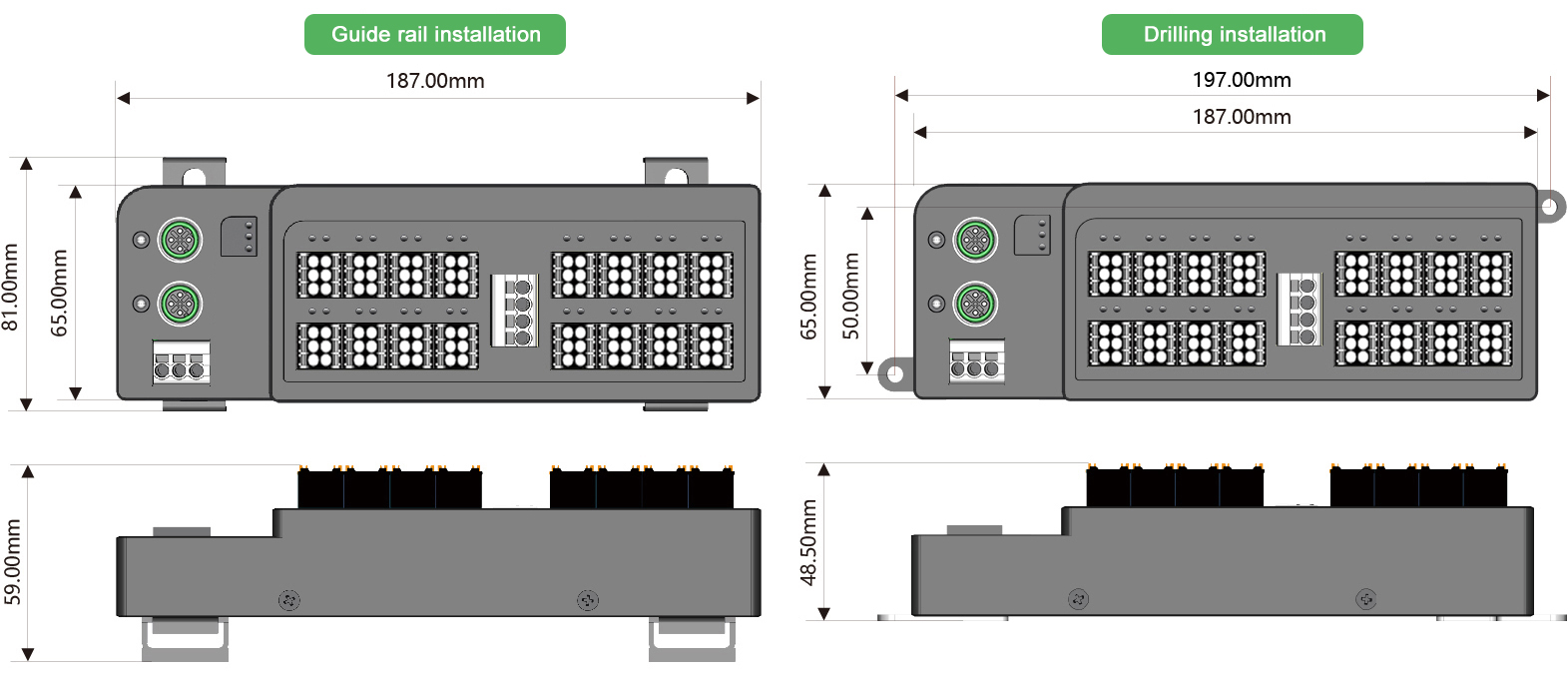

Installation Method: DIN35 rail installation or double-sided ear drilling installation
Operating Temperature: -20℃ to +75℃
Digital output points: 32
Output type: Transistor/NPN
Load type: Resistive load, inductive load, lamp load
Rated voltage: 24VDC (-15% to +20%)
Maximum output current: 0.5A per channel
Insulation: 500V DC between output and internal communication
Port protection: Overvoltage, overcurrent protection, reverse current protection
