Order Number: R51C2-PN(-Pro)
Bus Interface: 2xRJ45, Supports Cabling
Expansion Interface: 12-pin connector (male)

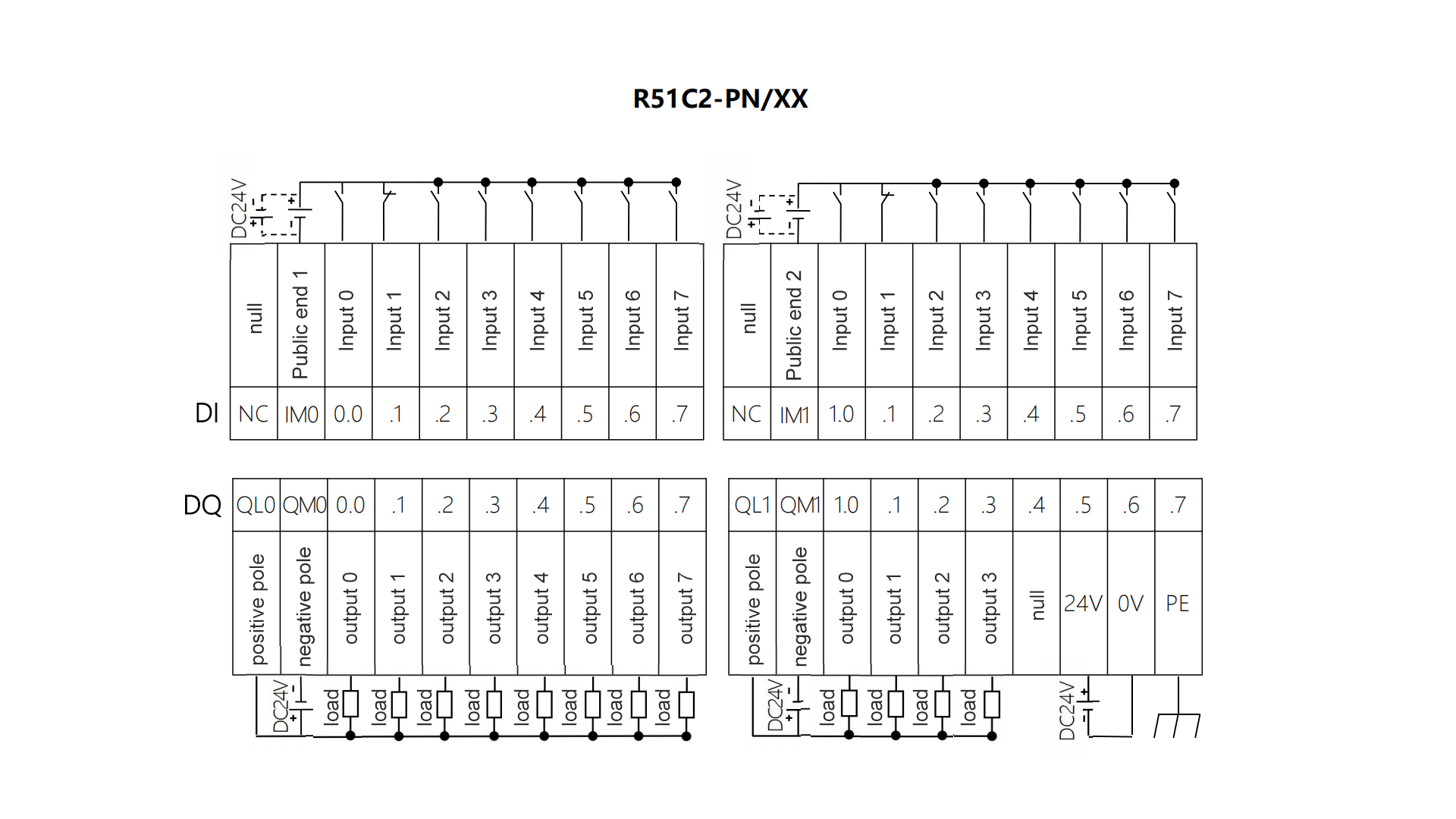

I/O Terminals: 10P European plug-in spring terminals
Communication Protocol: PROFINET RT
Communication Rate: 100M (Max), Adaptive
Addressing Method: Set by PROFINET master station software
Operating Voltage: 24V DC (-15% to +20%)
Operating Current: 150mA
Number of Expansion Modules: 7
Maximum Supported Points: Switching Points 112 (Max), Analog Channels 28 (Max)
Protection Level: IP20
Installation Method: DIN35 rail installation
Operating Temperature: -20℃ to +75℃
Digital input points: 16
Input type: PNP & NPN
Isolation method: Optocoupler isolation
Rated voltage: 24V DC (-15% to +20%)
Logic "1" signal: 11 to 30V
Logic "0" signal: 0 to 5V
Input filtering: Minimum 2ms
Digital output points: 12
Output type: Transistor/NPN
Load type: Resistive load, inductive load, lamp load
Rated voltage: 24VDC (-15% to +20%)
Maximum output current: 0.5A per channel
Insulation: 500V DC between output and internal communication
Port protection: Overvoltage, overcurrent protection, reverse current protection
