Order Number: SRX-16RTD-RTU
Communication Protocol: Modbus RTU
Communication Interface: 1xRS485, 2x5P European spring terminals, can be cascaded
Baud Rate (kbps): 2400, 4800, 19200, 38400, 57600, 115200
Addressing Method: Set through PROFINET master station software or dip switch
Protection Grade: IP20
Installation Method: DIN35 rail mounting
Operating Temperature: -20℃~+75℃
Rated Voltage: 24DC (-15%~+20%)
Number of thermal resistance input channels: 16

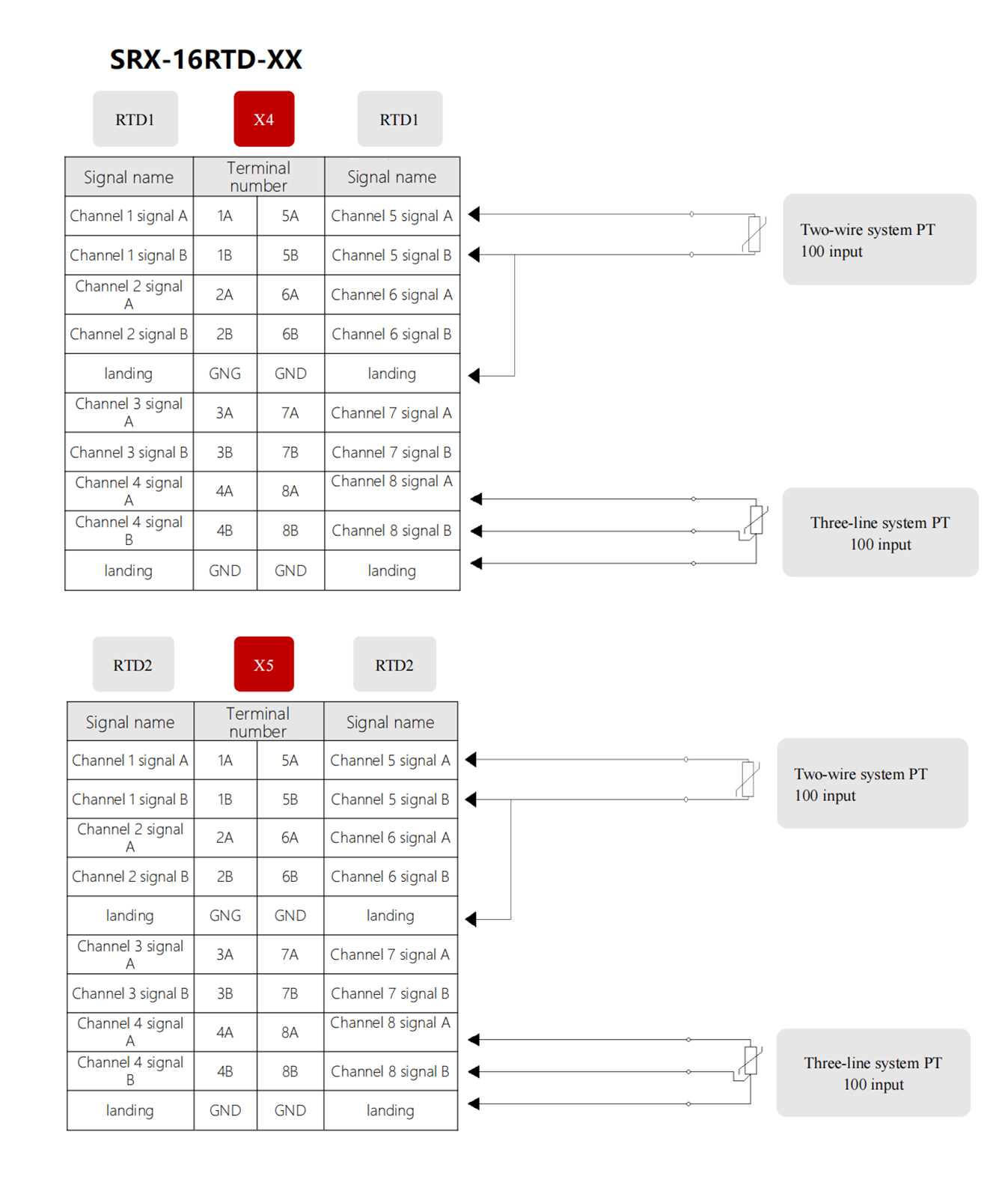

Connection method: Three-wire or two-wire (default three-wire)
Resolution: 16 bits (including sign bit)
Sensor type: PT100, Cu50
Temperature range: -200℃ to +850℃ (PT sensor), -60℃ to +250℃ (Ni sensor)
Sampling error: ±0.5℃ (full scale)
Sampling rate: 500ms per time
Data output: 0.1℃ per digit
Software filtering: Configurable
