Order Number: SRX-4AO-8TC-CE
Communication Protocol: CC-Link IE FieldBasis
Communication Interface: 2xRJ45, cascading possible
Communication Rate: 100M (MAX), adaptive
Addressing Method: IP address is set through LAE-Config software
Protection Level: IP20
Installation Method: DIN35 rail installation
Operating Temperature: -20℃ to +75℃
Rated Voltage: 24DC (-15% to +20%)

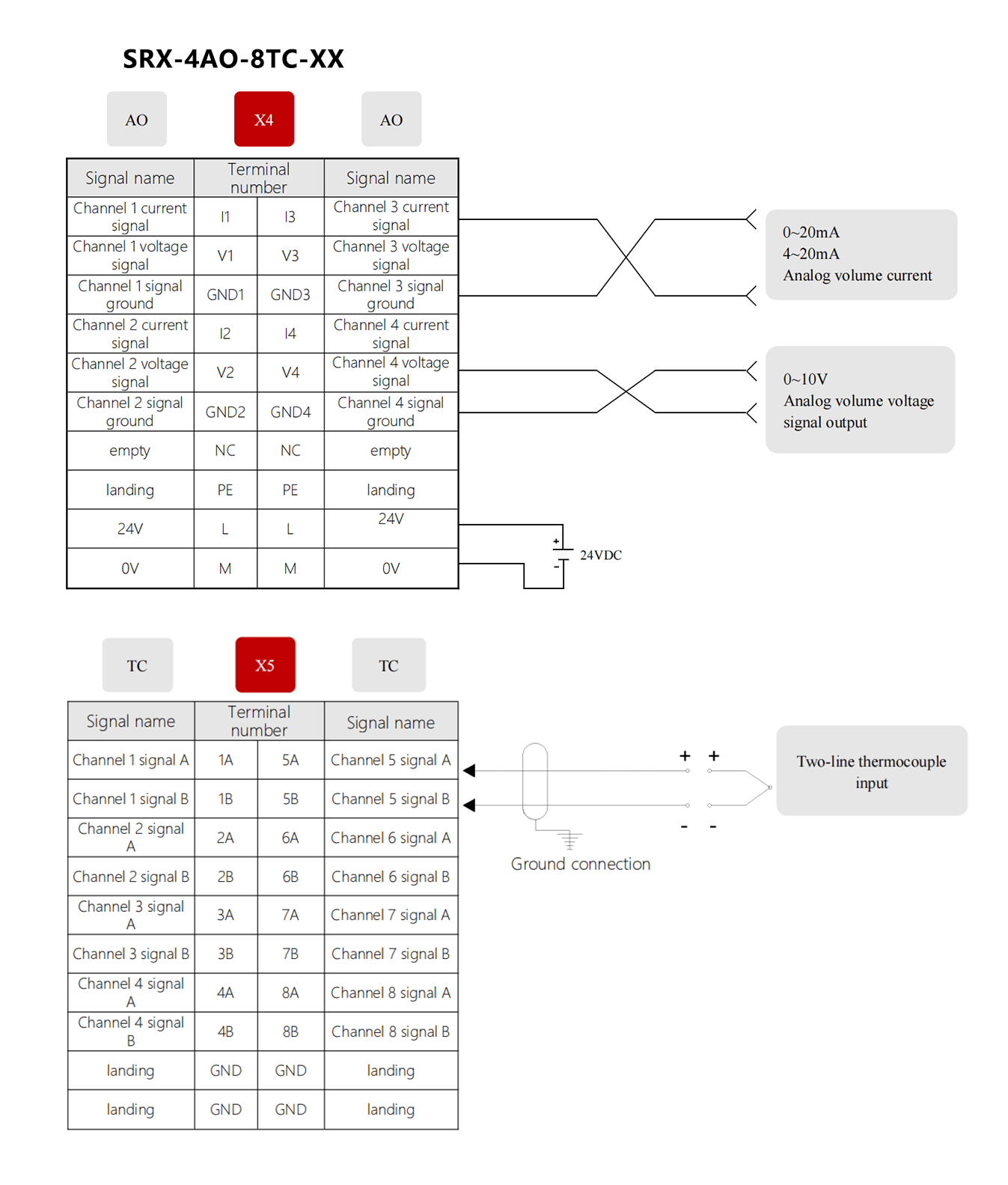

Number of analog output channels: 4
Output type: Current type / Voltage type
Resolution: 16 bits (including sign bit)
Output range: 0~20mA / 4~20mA / 0~10V
Input impedance: Current output ≤ 500Ω, Voltage output ≥ 1KΩ
Output error: ±0.1% (full scale)
Output rate: 1ms/each time
Number of thermocouple input channels: 8
Connection method: Two-wire system
Resolution: 16 bits (including sign bit)
Sensor type: K, S, R, B, J, N, E, T types of thermocouples
Temperature range: K type: -200 to +1300℃ S type: 0 to +1600℃ R type: 0 to +1600℃ B type: 100 to +1820℃ J type: -200 to -1200℃ N type: -270 to +1300℃ E type: -270 to 1000℃ T type: -200 to +350℃ Sampling error: ±0.5℃ (full scale)
Sampling rate: 500ms per time
Data output: 0.1℃ per digit
Software filtering: Configurable
