Order Number: SRX-6AI-8RTD-EP
Communication Protocol: EtherNet/IP
Communication Interface: 2xRJ45, cascading possible
Communication Rate: 100M (MAX), adaptive
Addressing Method: IP address is set through LAE-Config software
Protection Level: IP20
Installation Method: DIN35 rail installation
Operating Temperature: -20℃ to +75℃
Rated Voltage: 24DC (-15% to +20%)

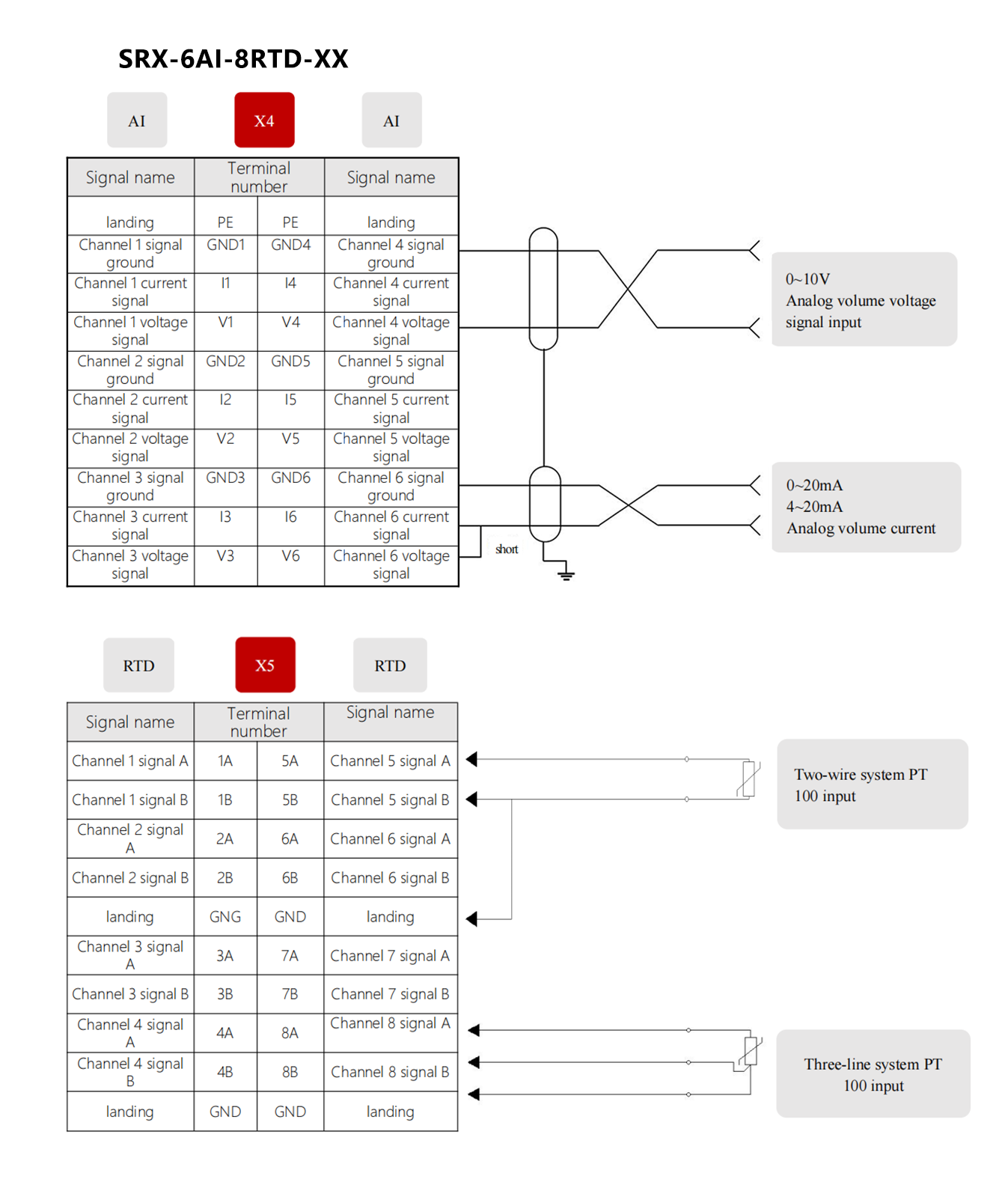

Number of analog input channels: 6
Input type: Current type / Voltage type
Resolution: 16 bits (including sign bit)
Sampling range: 0~20mA / 4~20mA / 0~10V / ±10V
Input impedance: Current sampling ≤ 124.5Ω, Voltage sampling ≥ 10MKΩ
Sampling error: ±0.1% (full scale)
Sampling rate: 1ms/each time
Breakdown diagnosis: When selecting 4~20mA output, -27648 is output
Software filtering: Configurable
Number of thermal resistance input channels: 8
Connection method: Three-wire or two-wire (default three-wire)
Resolution: 16 bits (including sign bit)
Sensor type: PT100, Cu50
Temperature range: -200℃ to +850℃ (PT sensor), -60℃ to +250℃ (Ni sensor)
Sampling error: ±0.5℃ (full scale)
Sampling rate: 500ms per time
Data output: 0.1℃ per digit
Software filtering: Configurable
