Order Number: SRX-8RTD-8TC-PN
Communication Protocol: PROFINET RT
Communication Interface: 2xRJ45, cascading possible
Communication Rate: 100M (MAX), adaptive
Addressing Method: Set through PROFINET master station software or dip switch
Protection Level: IP20
Installation Method: DIN35 rail mounting
Operating Temperature: -20℃~+75℃
Rated Voltage: 24DC (-15%~+20%)

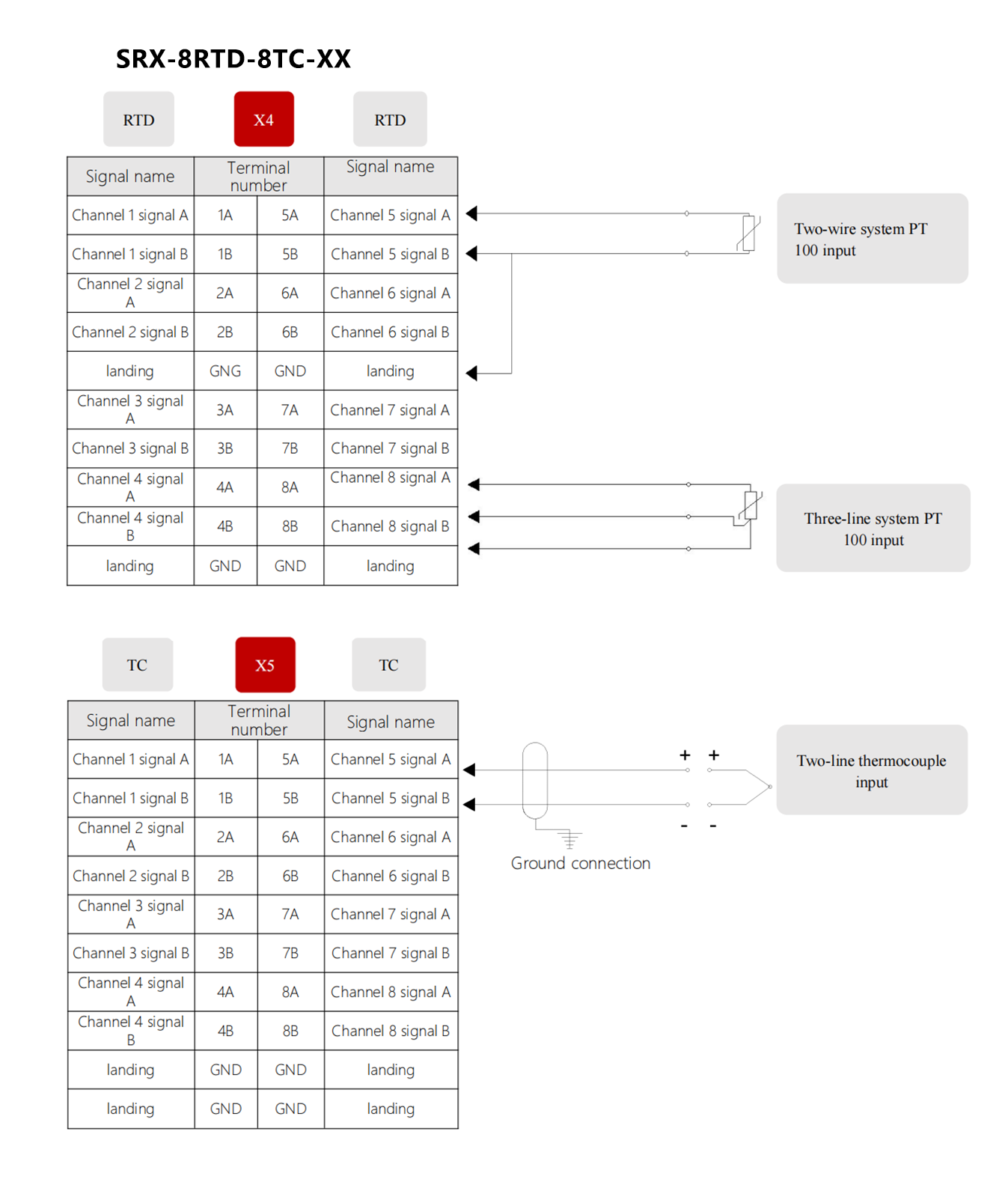

Number of thermal resistance input channels: 8
Connection method: Three-wire or two-wire (default three-wire)
Resolution: 16 bits (including sign bit)
Sensor type: PT100, Cu50
Temperature range: -200℃ to +850℃ (PT sensor), -60℃ to +250℃ (Ni sensor)
Sampling error: ±0.5℃ (full scale)
Sampling rate: 500ms per time
Data output: 0.1℃ per digit
Software filtering: Configurable
Number of thermocouple input channels: 8
Connection method: Two-wire system
Resolution: 16 bits (including sign bit)
Sensor type: K, S, R, B, J, N, E, T types of thermocouples
Temperature range: K type: -200 to +1300℃ S type: 0 to +1600℃ R type: 0 to +1600℃ B type: 100 to +1820℃ J type: -200 to -1200℃ N type: -270 to +1300℃ E type: -270 to 1000℃ T type: -200 to +350℃ Sampling error: ±0.5℃ (full scale)
Sampling rate: 500ms per time
Data output: 0.1℃ per digit
Software filtering: Configurable
