Order Number: SRX-A0008-PN
Communication Protocol: PROFINET RT
Communication Interface: 2xRJ45, cascading possible
Communication Rate: 100M (MAX), adaptive
Addressing Method: Set through PROFINET master station software or dip switch
Protection Level: IP20
Installation Method: DIN35 rail mounting
Operating Temperature: -20℃ to +75℃
Rated Voltage: 24DC (-15% to +20%)

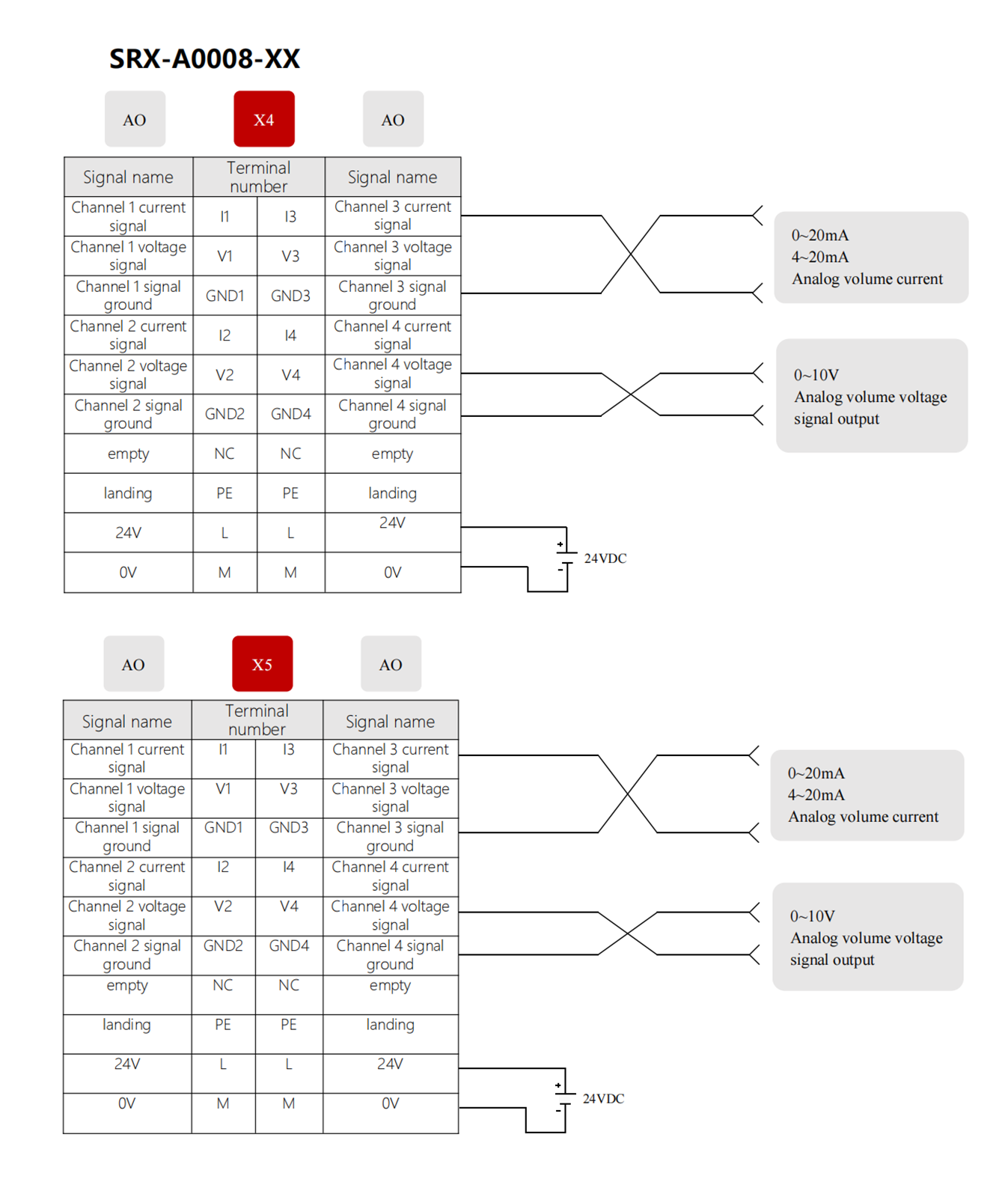

Number of analog output channels: 8
Output type: Current type / Voltage type
Resolution: 16 bits (including sign bit)
Output range: 0~20mA / 4~20mA / 0~10V
Input impedance: Current output ≤ 500Ω, Voltage output ≥ 1KΩ
Output error: ±0.1% (full scale)
Output rate: 1ms/each time
