Order Number: SRX-D0032P-PN
Communication Protocol: PROFINET RT
Communication Interface: 2xRJ45, cascading possible
Communication Rate: 100M (MAX), adaptive
Addressing Method: Set through PROFINET master station software or dip switch
Protection Level: IP20
Installation Method: DIN35 rail mounting
Operating Temperature: -20℃ to +75℃
Rated Voltage: 24DC (-15% to +20%)

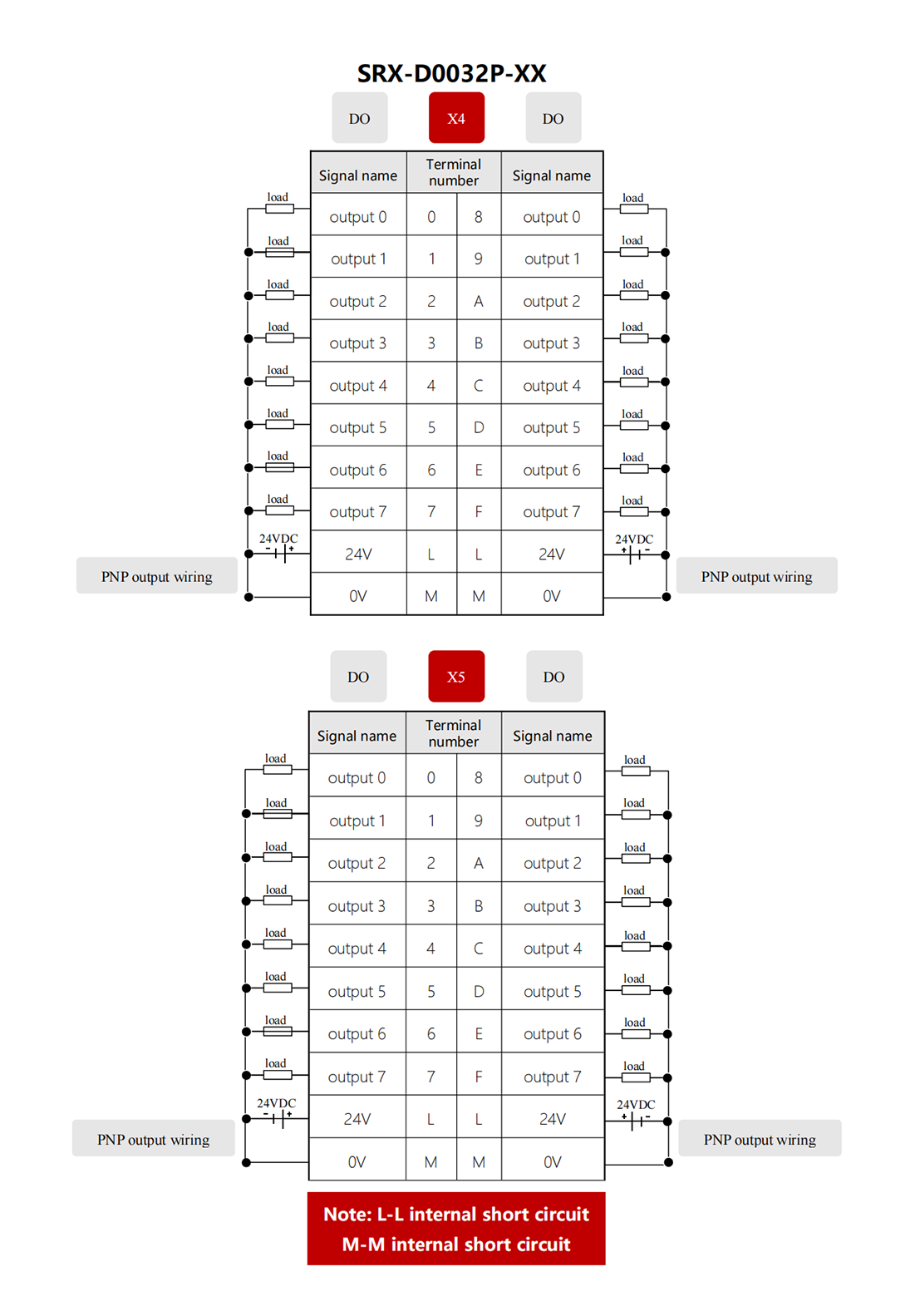

Digital output points: 32
Output type: PNP
Load type: Resistive load, inductive load, lamp load
Maximum output current: 0.5A per channel
Insulation: 500VDC between output and internal communication
Port protection: Overvoltage, overcurrent protection, reverse current protection
