Order Number: SRX-M0F60P-EP
Communication Protocol: EtherNet/IP
Communication Interface: 2xRJ45, cascading possible
Communication Rate: 100M (MAX), adaptive
Addressing Method: IP address is set through LAE-Config software
Protection Grade: IP20
Installation Method: DIN35 rail installation
Operating Temperature: -20℃ to +75℃
Rated Voltage: 24DC (-15% to +20%)

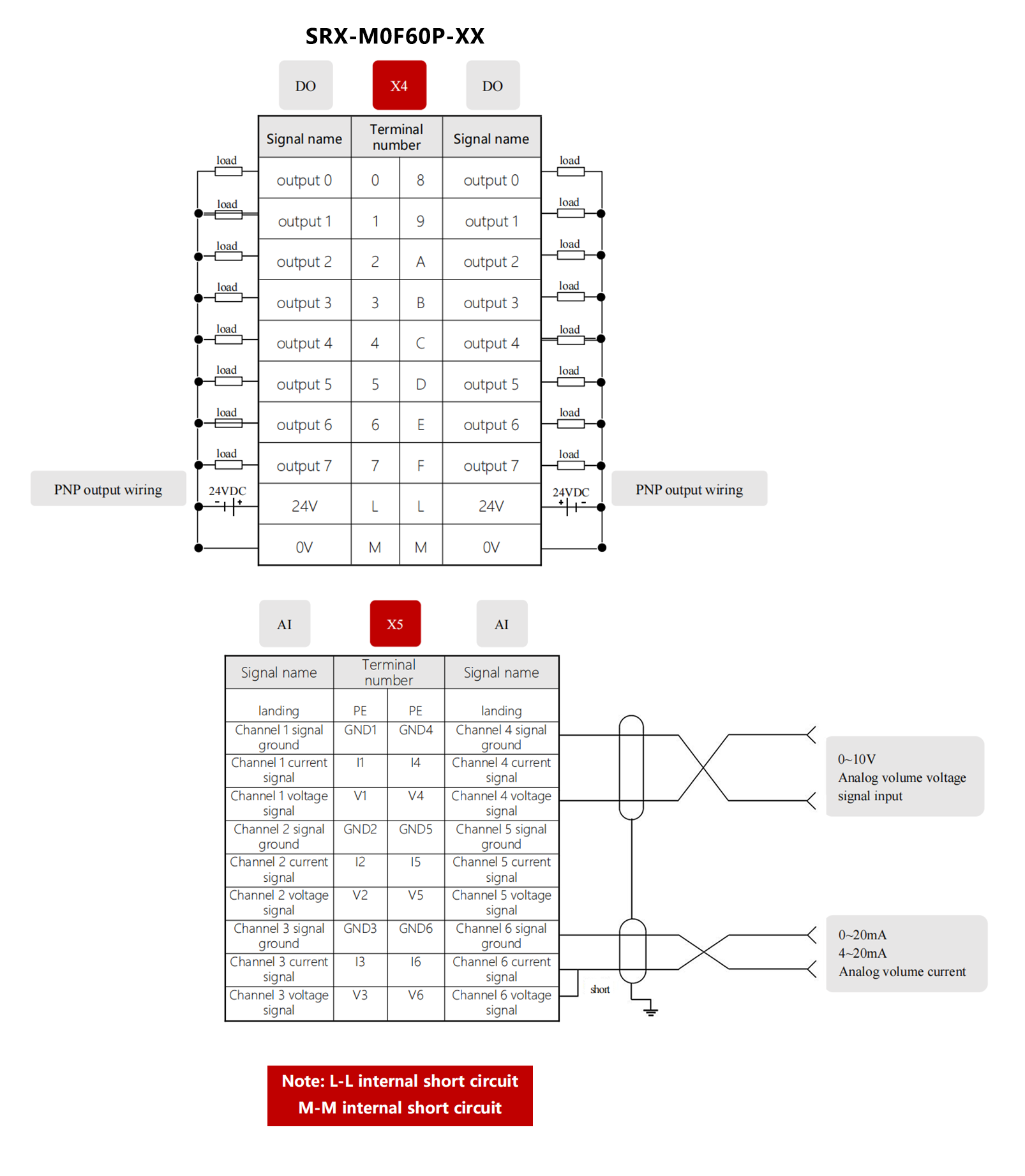

Digital output points: 16
Output type: PNP
Load type: Resistive load, inductive load, lamp load
Maximum output current: 0.5A per channel
Insulation: 500VDC between output and internal communication
Port protection: Overvoltage, overcurrent protection, reverse current protection
Number of analog input channels: 6
Input type: Current type / Voltage type
Resolution: 16 bits (including sign bit)
Sampling range: 0~20mA / 4~20mA / 0~10V / ±10V
Input impedance: Current sampling ≤ 124.5Ω, Voltage sampling ≥ 10MKΩ
Sampling error: ±0.1% (full scale)
Sampling rate: 1ms per time
Breakdown diagnosis: When selecting 4~20mA, output -27648
Software filtering: Configurable
