Order Number: Y-M12-M8-M4-2F3

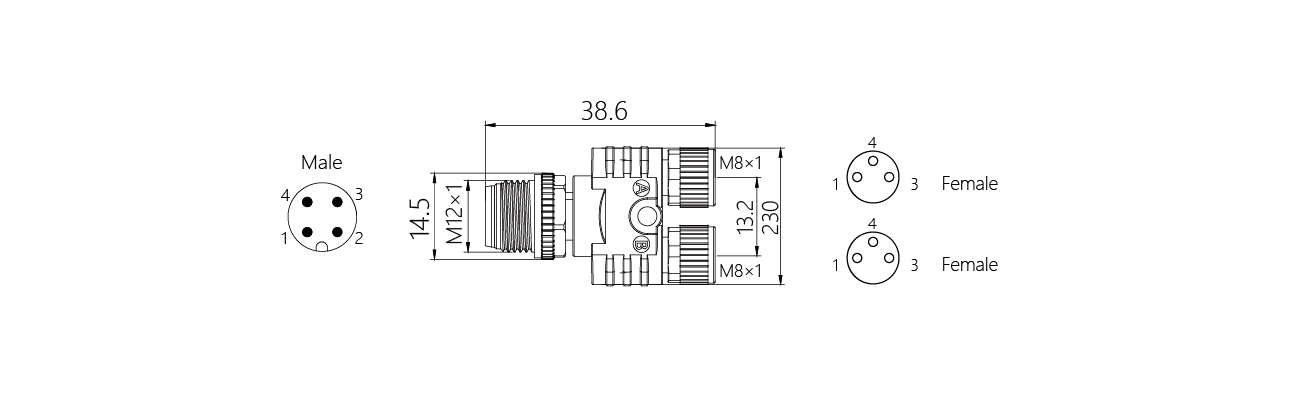

Specification Description: Y-type splitter, M12 to M8, A-Code
Voltage: 60V DC
Current: 2A
Shell Material: TPU/Black
Locking Nut: Alloy Copper/Galvanized Nickel
Pin Holder Material: TPU + GF/Black
Contact Material: Brass/Galvanized Nickel
Sealing Ring: FPM/FKM
Protection Grade: IP67 (after insertion and tightening) for M12
Insulation Resistance: ≥100MΩ
Contact Resistance: ≤5MΩ
Pollution Grade: 3
Operating Temperature Range: -25℃...+80℃
Torque: 0.4Nm (for M8 plug-in connector)
Insertion and Removal Life: ≥100

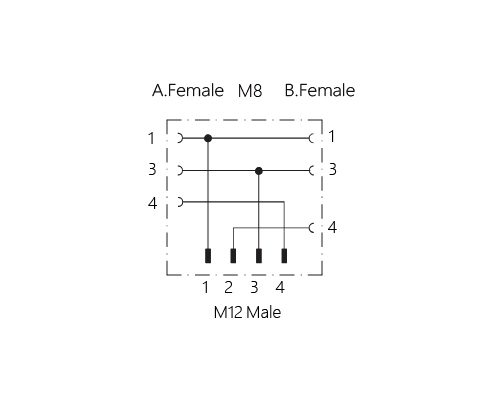

Application Scenario: Used for dual-channel I/O signal wiring at M8 interface
